CAP-HT
Hand-held Cap Torque Tester |
The CAP-HT has been replaced by the new and improved CAP-TT03. Click here to view the CAP-TT03 Data Sheet
 3 Ranges up to 100 In-lb

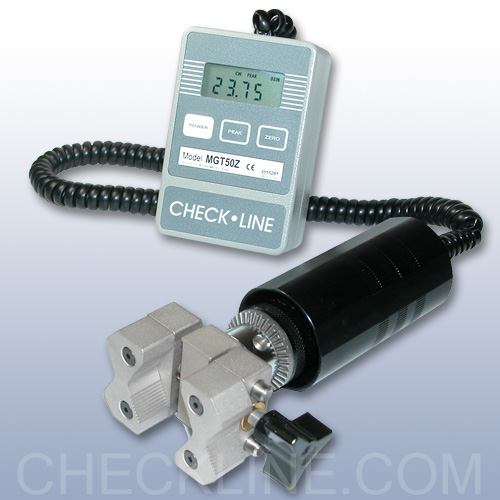

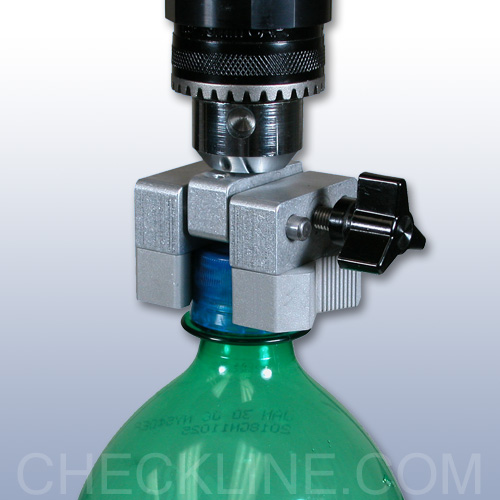

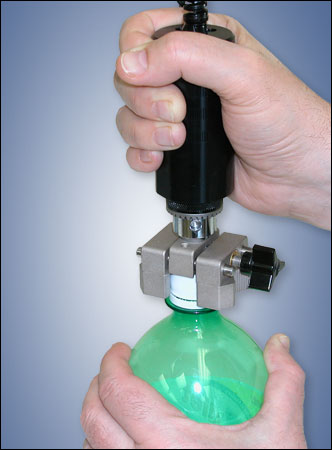

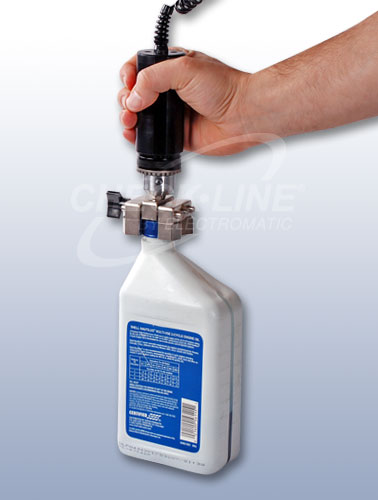

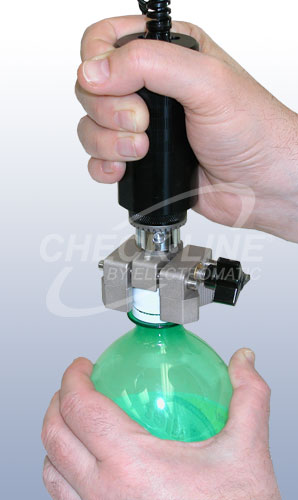

The CAP-HT is designed to measure the open and closure torque on bottles, vials, jars and more. This portable instrument is ideal for odd shaped containers that cannot be secured in traditional table top testers. Serrated jaws securely grip cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm). Measures Real-time or Peak torque on easy-to-read LCD display (clockwise and counter-clockwise directions), and is available in three capacities from 12 to 100 lbin (135 to 1150 Ncm).
 |
 3 Year Warranty | | For cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm) | | Supplied with NIST Calibration Certificate |
| | Battery or AC operation | | CE Certified |
|
CAP-HT Hand-held Cap Torque Tester
| Model |
Capacity | Resolution |
| CAP-HT-12 |
12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm |
| CAP-HT-50 |
50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm |
| CAP-HT-100 |
100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm | | |
|
CAP-TA
Cap Torque Tester |  |
Measures in real time or peak torque modes Data output via RS-232 and Mitutoyo | | Click image for more info | | ___________________________________________ |
|
CAP-HT-RS
Hand-held Cap Torque Tester
with Data Output & Memory |  |
RS-232C, Digimatic and Analog outputs 1000 Data memory for computer download | | Click image for more info | | ___________________________________________ |
|
G1058
Universal Cap Grip |  |
For Cap diameters from 0.2 - 3.5 in (5.1 - 89.0 mm) | | Click image for more info
|
| | | | The CAP-HT torque tester is supplied in a cushioned carrying case with AC adapter, battery, chuck key, user's manual, and NIST certificate of calibration |
 |
| Accuracy: |
± 0.5% of full scale ±1 digit |
| Sampling Rate |
30 times/s |
| Overload capacity: |
150% of capacity |
| Power supply: |
9V battery or AC adapter |

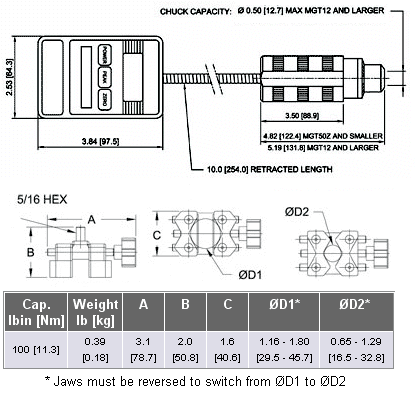

| Housing dimensions |
See Drawing |
| Weight |
1.8 lbs (0.8 kg) |
| Warranty |
3 Years |
|
|
Features
