CAP-T
Cap Torque Tester / Closure Torque Tester |
The CAP-T has been replaced by the new and improved CAP-TA. Click here to view the CAP-TA Data Sheet

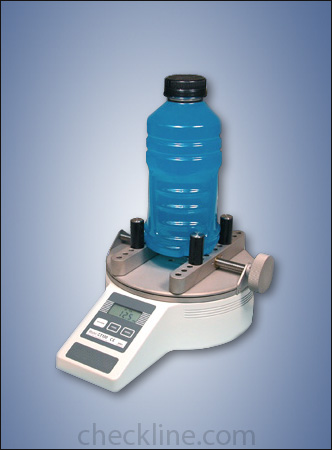

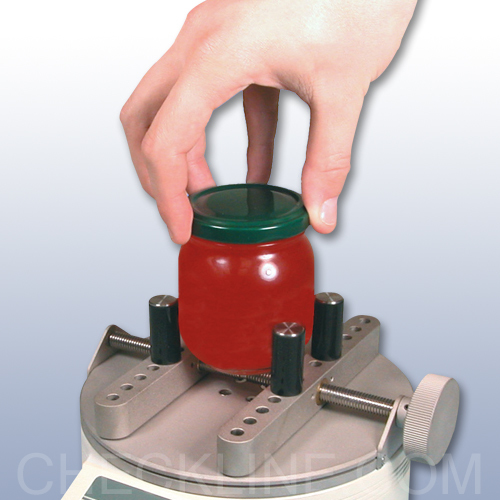

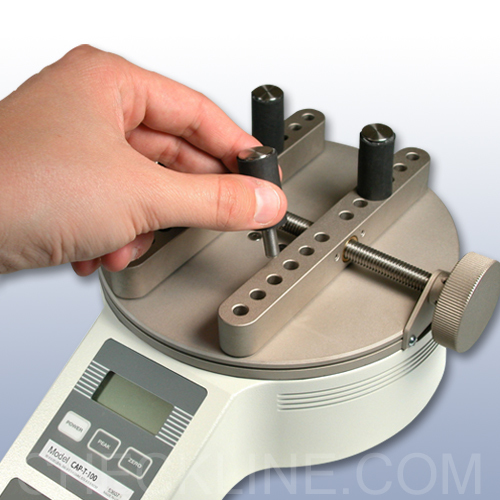

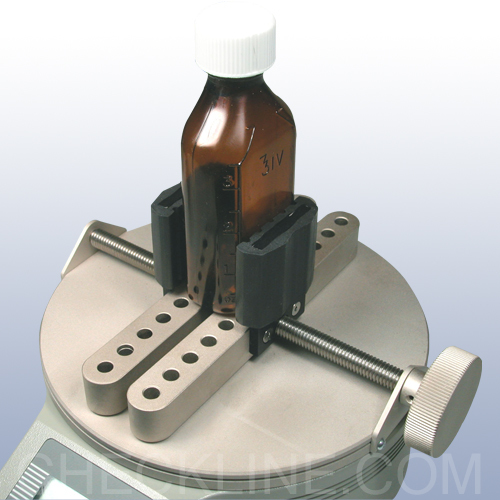

 The new CAP-T Cap Torque Tester accurately measures twist-off and twist-on force. The CAP-T is an ideal tester for bottlers, food and beverage companies, and others who need to measure closure torque. The tester features a solid aluminum housing and rugged construction for many years of service in laboratory or production environments. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of optional jaws are available as an alternative gripping method. The CAP-T closure torque meter captures peak torque in both clockwise and counterclockwise directions for application and removal measurements.

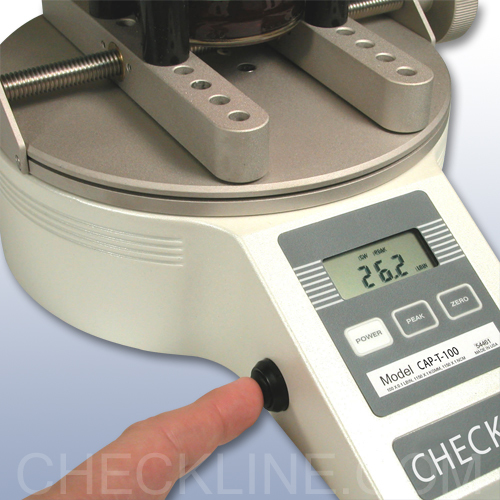

 The CAP-T-RS offers a data output button for easy transferring of the current reading to a PC or Printer for quality reporting. |
 3 Year Warranty | | Accepts samples up to 7.5" (189.4 mm) dia. | | Selectable units of measurement (lb-in, kg-mm, N-cm) | | Real time and peak mode (selectable) | | Includes NIST-Traceable Calibration Certificate |
| | Both clockwise and counterclockwise operation | | Battery or AC operation | | Accuracy: ±0.5% of full scale ±1 digit | | Outstanding Value | | RS-232 and Digimatic Serial Outputs for connection to printer or PC available on CAP-T-xxRS model |
|
CAP-T Cap Torque Tester
| Model |
Capacity | Resolution |
| CAP-T-12 |
12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm |
| CAP-T-50 |
50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm |
| CAP-T-100 |
100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm | | |
Cap dia.
in mm |
Phenolic/ Urea
Cap
On Glass |
Phenolic/Urea
Cap
on Plastic |
PP/PE Cap
on Glass |
PP/PE Cap
on Plastic |
| Close Torque |
Open Torque |
Close Torque |
Open Torque |
Close Torque |
Open Torque |
Close Torque |
Open Torque |
| 15 |
8 |
4 |
6 |
3 |
12 |
7 |
8 |
4 |
| 18 |
9 |
5 |
7 |
4 |
13 |
8 |
9 |
5 |
| 20 |
10 |
5 |
8 |
4 |
15 |
9 |
10 |
5 |
| 22 |
11 |
6 |
9 |
5 |
17 |
10 |
11 |
6 |
| 24 |
12 |
6 |
10 |
5 |
18 |
11 |
12 |
6 |
| 28 |
14 |
7 |
12 |
6 |
21 |
12 |
14 |
7 |
| 33 |
18 |
9 |
15 |
7 |
24 |
14 |
17 |
8 |
| 38 |
20 |
10 |
17 |
7 |
29 |
17 |
19 |
9 |
| 43 |
22 |
11 |
18 |
9 |
33 |
20 |
22 |
11 |
| 48 |
24 |
14 |
20 |
10 |
26 |
22 |
24 |
12 |
| 58 |
28 |
14 |
24 |
12 |
44 |
26 |
29 |
14 |
| 70 |
35 |
18 |
28 |
14 |
52 |
32 |
35 |
17 |
| 89 |
45 |
22 |
36 |
18 |
65 |
40 |
45 |
22 |
| 100 |
50 |
25 |
40 |
20 |
75 |
38 |
50 |
25 |
|
|
CAP-TA
Cap Torque Tester |  |
Measures in real time or peak torque modes Data output via RS-232 and Mitutoyo | | Click image for more info | | ___________________________________________ |
|
CAP-TNP
Digital Cap Torque Tester |  |
±0.5% F.S. Accuracy USB interface including FREE Digitorq Software | | Click image for more info | | ___________________________________________ |
|
DTX2
Cap Torque Tester |  |
Real time and peak mode (selectable) Serial Output for connection to Printer or PC | | Click image for more info | | ___________________________________________ |
|
DP-1VR
Mitutoyo SPC statistical processor/printer |  |
Portable printer for use with force and torque gauges | | Click image for more info | | ___________________________________________ |
|
MESURgauge
Mesurgauge Load & Travel Analysis Software |  |
Windows 7 Compatible | | Click image for more info
|
| Accuracy |
± 0.5% of full scale, ±1 least significant digit |

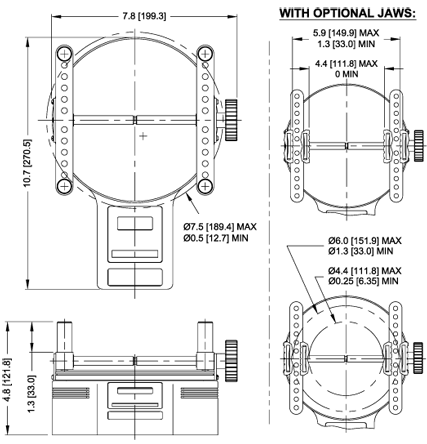

| Max Sample Diameter |
7.5" (189.4 mm) |
| Sampling Rate |
30 readings per second |
| Display |
4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation |
| Power |
Non-rechargeable 9V battery or AC operation with included adapter |
| Battery Life |
30 hours of continuous use, LO BAT indicator |
| Overload Protection |
150% or higher |
| Weight |
10 lbs (4.5 kg) |
| Warranty |
3 years |
| Calibration Certificate |
Included |
| Scope Of Delivery |
CAP-T includes, tester, set of four - 1" gripping pegs, AC adapter, calibration certificate and instruction manual |
|
|
