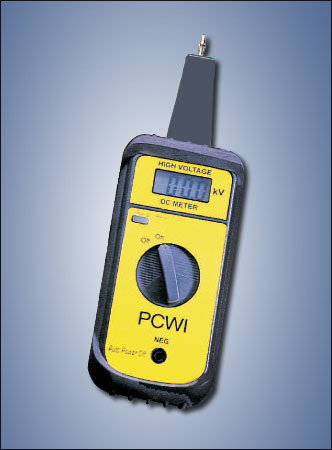

DC-CREST
High Voltage DC Crest Meter |
High Voltage Direct Current Crest Meter, Jeep Meter or Volt Meter
Measuring Ranges: 0 to 30,000 volts
For verifying output voltage and the calibration of Direct Current type Porosity and Holiday Detectors
Applications
Verification of output voltage and set voltage of detectors when a load is applied to the probe of Direct Current Type Porosity Detectors.
To ensure accuracy, and enable voltage adjustment (if necessary) |
 Used for checking and calibrating Direct Current Porosity Detector output voltage | | Integral probe | | Compact, light weight hand-held unit |
| | Conformance Certificate | | Carrying case: 14" x 11.5" x 7" (36 x 29 x 18 cms) | | 0 to 30kV (autoranging) Traceable Certification available |
|
| Range: |
0 to 30kV |
| Resolution: |
10V (0 to 20kV)
100V (0 to 30kV) |
| Earth Lead: |
Includes 23-foot (7m) Earth lead and clamp. |
| Dimensions: |
6.3" x 3" x 2" (160 x 75 x 50 mm) |
| Weight: |
12 oz (340g) |
|
|
|
