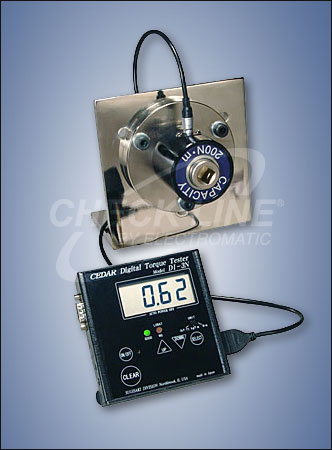

DI-3N
Digital Torque Tester with Remote Sensor - DISCONTINUED ITEM |
The DI-3N is no longer available. It has been directly replaced by the DIS-IP, click here for more info
Digital Torque Tester with flanged remote sensor calibrates torque tools up to 362 lb-ft. It has an accuracy of ±0.5% F.S., ± 1 LSD and measures torque in Peak, Real Time and Peak Down modes (selectable).
Do not use with impact tools (Use DI-1M impact wrench torque tester).
Use the 400 internal memory for peak data recall or RS-232C download for analysis by our data acquisition software SW-1S. |
 Heavy duty metal construction | | lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m (see table below) | | 400 data memory for recall or for SPC download | | RS-232C output for SPC capability (peak data only) | | Peak, Real Time and Peak Down measuring modes (selectable) |
| | Accuracy: ±0.5% F.S. ±1 LSD (32° to 100°F) | | Both clockwise and counterclockwise operation | | AC adapter/charger included | | Runs on internal NiCad batteries (8 hour use) |
|
|
Model |
Capacity
|
Drive
|
|
DI-3N-1P5
|
0.30~44.00 lbf-in
0.30~50.00 kgf-cm
3.0~500.0 N-cm
|
1/4"
|
|
DI-3N-1P50
|
3.0~440.0 lbf-in
3.0~500.0 kgf-cm
30~5000 N-cm
|
3/8"
|
|
DI-3N-1P200A
|
30~1800 lbf-in
30~2000 kgf-cm
3.0~200.0 N-m
|
1/2"
|
|
DI-3N-1P200
|
3.0~145.0 lbf-ft
0.30~20.00 kgf-m
3.0~200.0 N-m
|
1/2"
|
|
DI-3N-1P500
|
3.0~362.0 lbf-ft
0.30~50.00 kgf-mm
3.0~500.0 N-m
|
3/4"
|
|
|
