DI-5N-RL
Digital Torque Screw Driver |
As of September 2009 the DI-5N-RL is no longer available. We recommend the DIS-RL as a replacement, click for more info

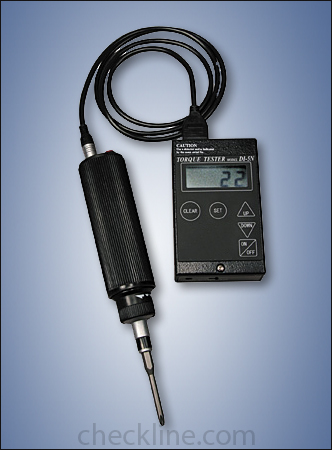

Digital Torque Screwdriver Tester is ergonomically designed, extremely lightweight and good for use as a production tool. It tightens or loosens screws up to 90 lbf-in., yet can be used in difficult to reach places. The torque Screwdriver can also be evaluated by comparative tests on a given fastener. Breakaway tests can be performed.
This torque screwdriver tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the RS232 port.
DI-5N-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. The Torque Screwdriver is sold in kit form including display unit, screwdriver with cable, AC adapter/charger and carrying case. |
 Ergonomic, light weight, rugged metal construction | | lbf-in, Kgf-cm and N-cm (selectable) | | Peak, Real Time and Peak Down measuring mode (selectable) | | Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F) | | 400 peak data memory for recall or for SPC download | | Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing | | Zero reset button on the driver for easy operation |
| | Both clockwise and counterclockwise operation | | RS-232 output for SPC capability (peak data only) | | Runs on internal NiCad batteries (8 hour use) | | Includes NIST-Traceable Calibration Certificate | | ISO/IEC 17025 Long-form Certificate & Test Data is optionally available | | 2 Year Warranty |
|
| Model |
Capacity |
| DI-5N-RL2 |
0.15 - 18.00 lbf-in
0.15 - 20.00 kg-cm
1.5 - 200.0 N-cm |
| DI-5N-RL10 |
1.5 - 90.00 lbf-in
1.5 - 100.0 kg-cm
15 - 1000 N-cm | | |
| Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F) |
| |
|
