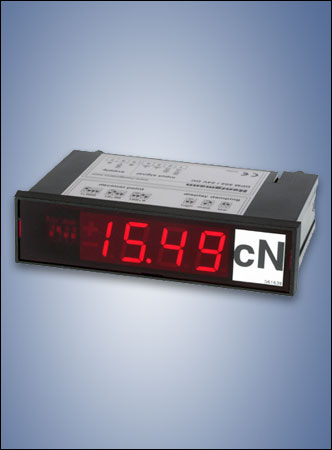

DPM502
Digital Tension Indicator

The DPM502 is designed to connect to the TS621 or TS481 Strain Gauge Amplifier, as well as the RFSE Tension Sensor.

It incorporates built-in calibration adjustments to scale the tension values into display units. The 3 1 /2 LED display has a user-set decimal point and will display values up to 1999. Faceplate is easily removed to make calibration adjustments.

Selectable “damping function” reduces display fluctuations

scaling by means of 2 multiturn trimmers (rough / coarse)

Easy snap-in installation

24V DC power supply with galvanic isolation

User control pots & dip switches are accessed behind display panel.

RFS On-Line Tension Sensor
Resolution of 0.1% and better Rugged stainless steel housing is environmentally sealed Overload protection up to 800%
	Click image for more info
___________________________________________

TS481 Strain Gauge Measurement Amplifier
Galvanic Isolation minimizes the chance for signal interference, including ground faults Provides accuracy of ±0.1% User-enabled "damping function" eliminates tension fluctuations
	Click image for more info
___________________________________________

TS621 Strain Gauge Amplifier
Designed for use with a wide range of strain-gauge-based force, load and tension sensors 0-10VDC analog output
	Click image for more info
___________________________________________

MU621
Tension Indicator/Amplifier Console

for strain gauge sensors

1 to 4 measuring channels

Click image for more info

Display	3 1 /2 - digit LED (1999 max.) 14mm height
Decimal Point	User-Selected
Damping Rate	0.2 to 4 sec.
Display Update Rate	0.5 sec.
Power Required	24 VDC @ 50 mA (approx)
Panel Cutout	92 x 22mm
Weight	3.5 ounces (100 g)
Dimensions	3.7" W x 3" D x 1" H (96 x 77 x 24mm)

PDF Data Sheet Click here to download

Specifications Sheet Click here to download
