FGV-XY
Digital Force Gauge with USB Output

9 Ranges up to 200lbs
Measures Push / Pull Force

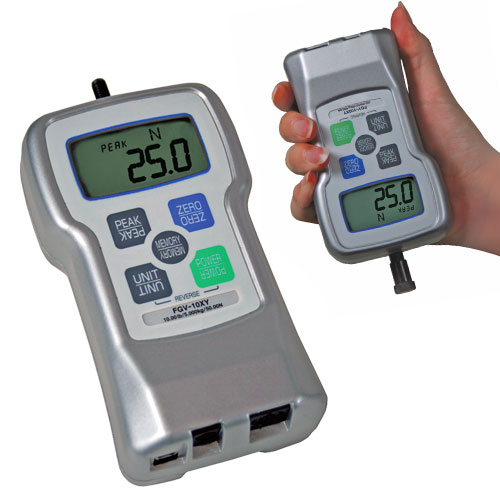

The all new FGV-XY series force gauge delivers industry-leading value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software.

Force values can be transferred in real time continuously or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation.

The FGV-XY provides is suitable for use in numerous industries & applications including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

The USB output uses software that is compatible with Win XP only, RS232 software is a microsoft excel plugin that works on XP or Win 7. A USB cable is included with the force gauge, the RS-232 cable is optional.

1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals

Accuracy of ±0.2%
providing superb repeatability

USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility

9 separate capacities from 0.5 Lb to 200 Lb
select the best range without forfeiting accuracy

200% Overload Capacity
minimizes the likelihood of costly repairs

Rugged Die Cast Aluminum Housing & Rugged Construction
provides exceptional durability even in the toughest field applications

Reversible Display
optimized for use as both a handheld gauge or mount upside down on a test stand

Selectable Auto-Shut Off
prolongs battery life, while allowing constant use when powered via supplied AC-adapter

Small Size
Ergonomic design provides comfort for hand held testing

Automatic Calculation & Display of Statistics
provides immediate results and analysis of your force testing

3 Memory Modes
optimize data storage for any application transferring data to PC/Laptop when convenient

Built In User-Set Hi-Lo Alarm Limits
perform quick and easy ‘Go-No Go’ testing with visual LCD indicator when "out of tolerance"

Includes traceable calibration certificate (sample)

2-Year Warranty

FGV-XY Digital Force Gauge

Model	Capacity	Resolution
FGV-0.5XY	0.5 lb 2 N 200 g 8 oz	0.001 lb 0.001 N 0.1 g 0.01 oz
FGV-1XY	1 lb 5 N 500 g 16 oz	0.001 lb 0.001 N 0.1 g 0.01 oz
FGV-2XY	2 lb 10 N 1000 g 32 oz	0.001lb 0.01 N 1 g 0.01 oz
FGV-5XY	5 lb 20 N 2 kg	0.001 lb 0.01 N 0.001 kg
FGV-10XY	10 lb 50 N 5 kg	0.01 lb 0.01 N 0.001 kg
FGV-20XY	20 lb 100 N 10 kg	0.01 lb 0.1 N 0.01 kg
FGV-50XY	50 lb 200 N 20 kg	0.01 lb 0.1 N 0.01 kg
FGV-100XY	100 lb 500 N 50 kg	0.1 lb 0.1 N 0.01 kg
FGV-200XY	200 lb 1000 N 100 kg	0.1 lb 1 N 0.01 kg


The FGV-XY is supplied as a complete kit including, gauge, AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable and instruction manual in a foam-fitted carrying case.

Special Attachments

FGS-100H Manual Hand Wheel Operated Test Stand
Versatile bottom mounting plate accepts standard and custom-made attachments
	Click image for more info
___________________________________________

FGS-200PV E-Force Test Stand (200 lb capacity)
Auto reverse for test modes Hands off operation, reduces errors, speeds tests
	Click image for more info
___________________________________________

FTS-X Force Test System
1000 Hz Sample Rate captures true peak values even those occurring over very short time intervals Accuracy of ±0.2% providing superb repeatability
	Click image for more info
___________________________________________

FG-HANDLE Force Gauge Handle

	Click image for more info

Measuring Modes	Realtime, Compression Peak, Tension Peak
Display Update Rate	User Selectable: 1, 2, 3, 5, 10, 20 times per second
Sampling Rate	1000 times per second (1000Hz/1KHz)
Accuracy	± 0.2% F.S.
Temperature Drift	Gain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function.
Display	Main display: 4-digits 12mm high, Reversible Units display: 3-digits 7mm high Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold)
Overload	200% of Full Scale On Model FGV-200XY: 150% F.S.
Tracking	User Selectable (ON/OFF)
USB Output	Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output	Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output	± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output	Open-collector output (Max DC30V/5mA).
Power	Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging.
Operating Time	Approximately 8 hours after a full charge. Charging Time: 16 Hours Max.
Auto Power Off	Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.
Memory function	Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation)
Comparator function	User Selectable: HI and LO
Temperature range	0 ~ 40° C (-32 ~ 104° F)
Humidity range	35 ~ 85% RH
Dimensions	147mm (L)x 75mm (W) x 38mm(H)
Weight	Approx. 450g On Model FGV-200XY: Approx. 500g
Accessories(Included)	AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
Application Software	Application software (USB version): Available at www.shimpoinst.com/software for free.
