FTS
Force Test System

DISCONTINUED ITEM

Available in 6 Ranges up to 110lbs

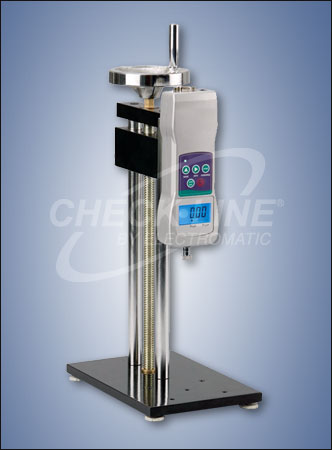

The FTS Force Test System includes the GL Digital Force Gauge and CT Mechanical Hand-Wheel Test Stand. The system is designed for precise, accurate measurements at an affordable price.

The GL force gauge features a rechargeable battery, serial output, backlit display, die-cast enclosure, carrying case, calibration cert and more.

The CT Test Stand is an ideal complement to the GL Force Gauge to improve testing results. Also available are a range of grips and accessories to expand testing capability.

Six capacity choices up to 110 lbs

Rechargeable battery

Accuracy to 0.4% of capacity

Backlit display

Includes carry case, charger, six common fittings, test stand and calibration certificate

Tension and compression measurement

Everything needed for common testing

One year warranty

Model	Capacity	Resolution
FTS-5	5.5 lbf 2.5 kgf 25 N	0.002 0.001 0.01
FTS-11	11 lbf 5 kgf 50 N	0.005 0.002 0.02
FTS-22	22 lbf 10 kgf 100 N	0.01 0.005 0.05
FTS-55	55 lbf 25 kgf 250 N	0.02 0.010 0.1
FTS-110	110 lbf 50 kgf 500 N	0.05 0.02 0.2

All Rangess have an M6 p1 Threaded Stud Sensor

GP-8 General Purpose Grip

	Click image for more info
___________________________________________

GP-15 General Purpose Grip

	Click image for more info
___________________________________________

FTS-HD
High Capacity Force Test System

1000 lb / 500 kg / 5000 N Capacity

Heavy-duty load sensor

Click image for more info

Accuracy	+/- 0.4% of capacity
Travel	0.12in / 3mm per handle revolution
Maximum clearance and travel	12.5in (318mm) (With force gauge, but without grips or fixtures)
Overload protection	120% minimum
Enclosure	Die cast metal
Power	Rechargeable battery or AC charger
Display type	7 segment LCD, 4.5 digit with backlight
Data output	RS-232
Operating temperature	60º – 95ºF (15º – 35ºC)
Battery Life	20 hours from a full charge
Warranty	1 year

PDF Instruction Manual Click here to download
