FX2

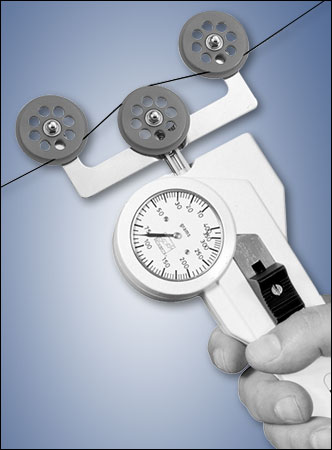

Optic Fiber Tension Meter

Large diameter rollers and 100 mm spacing between outer rollers minimize damage to optic fibers and similar materials that cannot withstand a small bending radius.

Finger Support: We recommend mounting a finger support for higher tension ranges

Note:This model does not include a material thickness compensator

Standard roller material is Delrin plastic or, optionally, aluminum (L).

Lightweight, low inertia 32 mm diameter rollers for speeds up to 2000 m/min or, optionally, up to 4000 m/min (K).

The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment

Large bending radius assures gentle handling of the material being measured

Special finger support located on the rear side reduces the effort to move the outer roller assembly

Built-in mounting holes permit fixed installation for continuous tension measurement

Special guides on the bracket assembly permit easy material acquisition

Model	Range	Measuring Width Head
FX2-50	5-50	140
FX2-120	10-120	140
FX2-400	10-400	140
FX2-1000	20-1000	140

Order Code	Line Speed ...m/min	Roller Material
Standard	4000	Hardcoated aluminium
Code T	4000	Plastic (PVC) red

FX2S Optic Fiber Stationary Tension Meter
Built-in mounting holes permit fixed installation for continuous tension measurement
	Click image for more info


The FX2 Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case.

Accuracy	±1 % full scale or ±1 graduation on scale
Diameter of Scale	41 mm
Temperature Range	10 - 45 ºC
Air humidity	85 % RH, max
Housing material	Die-cast aluminium
Housing Dimensions	188 x 85 x 45 mm (LxWxH)

PDF Instruction Manual Click here to Download

PDF Data Sheet Click here to Download
