MCS-625
Photo Reflective Sensor |

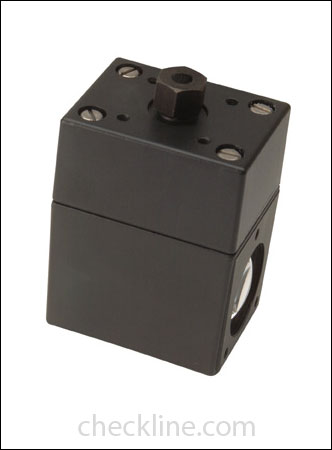

Consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing. For initial alignment purposes, a small indicator lamp is mounted in the top of the sensor housing. The MCS-625 has an open collector output and requires a pull up resistor. |
 The MCS-625 has an open collector output and requires a pull up resistor | | Consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing |
| | A small indicator lamp is mounted in the top of the sensor housing |
|
| Operating Range |
1" to 3ft |
| Power Input |
12 to 18VDC at 35 to 50mA |
| Activation Frequency |
250Hz |
| Ambient Temperature |
-30ºC to 50ºC ( -22ºF to 122ºF) |
| Output |
Open collector type sink current 250mA max |
| Cable length |
10ft |
| Weight |
18.5 oz |
| Housing |
Zinc die cast |
| Mounting |
4 mounting holes in base, 3 holes in face |
|
DT-311A
Digital Stroboscope |  |
Highest accuracy and most stable flash rate | | Click image for more info | | ___________________________________________ |
|
DT-315A
Digital Stroboscope with Internal Battery |  |
Highest accuracy and most stable flash rate | | Click image for more info | | ___________________________________________ |
|
DT-315AEB
Digital Stroboscope with External Battery |  |
Highest accuracy and most stable flash rate Accepts external trigger input and provides synchronizing pulse output | | Click image for more info | | ___________________________________________ |
|
DT-721
Low Cost Digital Stroboscope - AC Powered |  |
Highly accurate speed control with drift-free operation | | Click image for more info | | ___________________________________________ |
|
DT-725
Low Cost Digital Stroboscope - Battery Powered |  |
Highly accurate speed control with drift-free operation Accepts input from sensor for external flash triggering | | Click image for more info | | ___________________________________________ |
|
DT-5TG
Multi-Purpose Panel Tachometer |  |
User-set Hi and Lo limits Accepts various modules;
works with a variety of sensors | | Click image for more info
|
|
