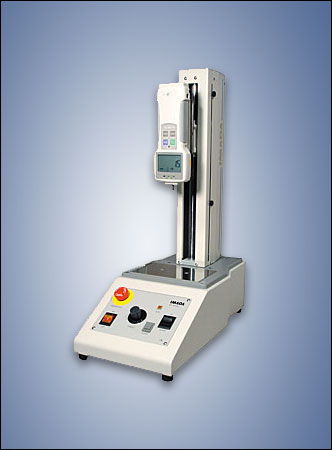

MV-110
Motorized Test Stand |
Capacity: 110lbs / 50Kg / 490N
The Check-Line MV-110 test stand offers consistent and reliable testing. Combination of screw system and state of the art brushless motor provides extremely smooth and powerful operation over the entire speed range. The MV-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.
*FORCE GAUGE NOT INCLUDED
Designed to work with the DS2, Z2 & ZP force gauges. |
 One stand for both compression (push) and tension (pull) tests | | Optional digital distance meter | | Maximum clearance 9"
(with extender 14") |
| | Screw feeder for smooth, positive movement | | No programming required |
|
|
LP-99
Lexan Safety Shield |  |
Helps protect personnel from injury by containing debris during testing | | Click image for more info | | ___________________________________________ |
|
DS2
Digital Force Gauge |  |
Real time and peak mode (selectable) lb, kg, and Newton units are push-button selectable | | Click image for more info | | ___________________________________________ |
|
NIST CAL
|  |
| | Click image for more info
|
|
Model |
Speed Range |
Distance Meter |
|
MV-110 |
0.4 – 11.5
in/min
(10 - 292 mm/min) |
No |
|
MV-110-SS |
0.26 – 8.0 in/min
(6.6 - 203 mm/min) |
No |
|
MV-110-MS |
0.7 - 23.0
in/min
(18 - 584 mm/min) |
No |
|
MV-110-HS* |
1.5 - 47.0
in/min
(38 - 1194 mm/min) |
No |
|
|
|
MV-110S |
0.4 – 11.5
in/min
(10 - 292 mm/min) |
Yes |
|
MV-110S-SS |
0.26 – 8.0 in/min
(6.6 - 203 mm/min) |
Yes |
|
MV-110S-MS |
0.7 - 23.0
in/min
(18 - 584 mm/min) |
Yes |
|
MV-110S-HS* |
1.5 - 47.0
in/min
(38 - 1194 mm/min) |
Yes |
|
*HS models have a limited capacity of 55lbs/25Kg/245N |
|
| Capacity |
110lbs / 50Kg |
| Travel Rate |
Refer to Ordering Guide above |
| Dimensions |
Refer to Dimensions above |
| Compatible Gauges |
Z2, ZP and DS2 |
| Warranty |
2 years |
| *Note |
Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second |
|
|
Features
