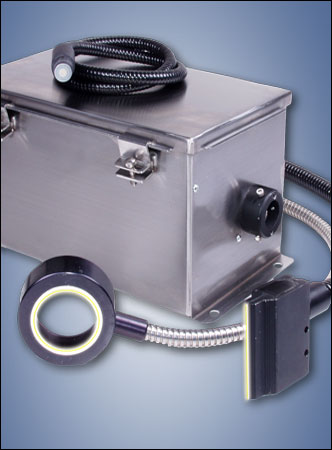

MV-6000
Machine Vision Stroboscope

4 Models with Flashrates up to 200 Hz

The MV series strobe illumination system designed for harsh environments. This series of stroboscope has a high output, long life, and outstanding reliability that won’t fail in demanding applications. The MV series incorporates our best engineering design. This series of stroboscope consists of a xenon flashtube, and the latest reflector and power supply technology.



 Features

bluedot Variable intensity control
bluedot The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR)
bluedot Industries highest light output per watt
bluedot Custom versions for specific applications and OEM version available. Inquire


 Photo Gallery - click any photo to enlarge


 Dimensions

dimensions


 Related Products


MVC-4000
Machine Vision Stroboscope Chassis		related

bluedot Chassis Mount Design for OEM applications

bluedot Highest light output per watt

bluedot Variable intensity control

 Click image for more info
___________________________________________


AS4000
Machine Vision Stroboscope		related

bluedot Variable intensity control

bluedot Custom versions for specific applications and OEM version available. Inquire

 Click image for more info


 Specifications

MODEL MV-6010 MV-6020 MV-6060 MV-60200
Spectral Bandwidth Standard: 400-850 nm
Custom: 225-1100+ nm
Radiometric Light Output 210mJ 120mJ 50mJ 25mJ
Flashrate in Hz @ 600V 10 max 25 max 75 max 300 max
Pulse duration @ 1/3 peak 30 µsec 15 µsec 10 µsec 7 µsec
Fiber bundle outside diameter 1.0 inch (25mm) max
Electrical Specifications
Input Voltage 120/230VAC ±10%, 50/60Hz
Input Power 60 Watts
Trigger Input +5V, 20mA, 10-100µsec pulse (into an optoisolator with internal 150 ohms nominal series resistor)
Flash Lamp Voltage (Factory Set) 600 VDC
Discharge capacitor: 30 µF 12 µF 4 µF 1 µF
Input energy per flash @ 600V 5.41 joules/flash 2.16 joules/flash 0.72 joules/flash 0.18 joules/flash
Delay between flash command and light output 10 µsec (typ)
Ext. ref. voltage 1 to 6 volts DC (V0-Vref x 60)
General Specifications
Storage Temperature -40 - 90° C
Operating Temperature 0 - 40° C
Dimensions See drawing above
Weight 13.4 lbs (6 Kg)

line
reddot Pricing
linePlease inquire: 800-645-4330


 Downloads

manual  PDF Data Sheet  Click Here To Download

manual  PDF Instruction Manual  Click here to download

manual  Instruction Manual Addendum  Click Here To Download


 Buy Now

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
MV-6010 $1,875.00 MV-6010 StroboscopeSpecial Order Item, Not In Stock
MV-6020 $1,875.00 MV-6020 StroboscopeSpecial Order Item, Not In Stock
MV-6060 $1,875.00 MV-6060 StroboscopeSpecial Order Item, Not In Stock
MV-60200 $1,875.00 MV-60200 StroboscopeSpecial Order Item, Not In Stock
Accessories
FH-MV6000 $335.00 Spare / Replacement Flash lamp and Reflectory assemblyIn Stock
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
