Pulse Holiday Detector
High Voltage Pulse Holiday Detector |
Measuring Ranges:
Model P20: 2,000 to 20,000 Volts
Model P40: 5,000 to 40,000 Volts
Model P60: 10,000 to 60,000 Volts
Resolution: 100 Volts

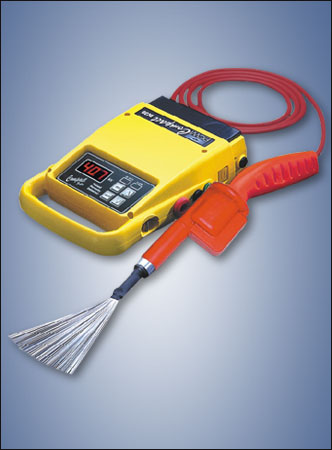

The PCWI Compact Pulse Porosity Detector is fully adjustable, has regulated 'pulsed' output up to 20kV, 40kV or 60kV. All pulse models can be used for porosity and holiday testing of carbon impregnated coatings such as carbonated rubber, thick coatings such as rubber linings and on ‘plastic’/fibreglass type coatings likely to become electrostatically charged.
Regulated 'pulsed' output is fully adjustable. Ideal for use:
- In moist conditions
- On wet coating surfaces
- On contaminated coating surfaces
- On carbon-impregnated coatings, i.e. carbonated rubber
- On "plastic'/fiberglass type coatings likely to become electrostatically charged
- Coating thickness range: 6 to 1000 mils (150 to 25,000µm) with the P40 holiday detector (and even thicker coatings with the P60) |
 Light weight ABS case | | The P20 and the P40 holiday detectors are available in industrial and pipeline kits. The P60 is available only in an industrial kit. | | Clip-on battery pack | | 'Wet' or 'dry' condition sensitivity control on P20 and P40 porosity detectors | | Single power supply | | LED digital display of applied voltage |
| | Voltage ranges of 2000 to 20kV or 40kV and 10kV to 60kV, fully adjustable | | Constant test current | | Overcharge protection | | Earphones for noisy environments | | Low battery condition indicator | | The Pulse 60kV model is the only portable battery operated model on the market capable of generating voltages from 10,000 to 60,000 volts |
|
|
FBE
Flat Brush Electrodes |  |
| | Click image for more info | | ___________________________________________ |
|
CPC
Circular Pipeline Coils |  |
| | Click image for more info | | ___________________________________________ |
|
IBE
Circular Internal Brush Electrodes |  |
The circular disk brushes are available in standard sizes of 4" (102mm) to 20" (508mm) diameters. Larger sizes available upon request. | | Click image for more info | | ___________________________________________ |
|
EBE
External Rolling Pipeline Brushes |  |
Sizes from 1" (25mm) to 20" (508mm) diameters or custom made as required. | | Click image for more info | | ___________________________________________ |
|
PU-CREST
High Voltage Pulse Crest Meter |  |
Used for checking and calibrating Porosity Detector output voltage | | Click image for more info
|
| Model: |
P20 |
P40 |
P60 |
| Unit Weight: |
4.8 lbs (2.2 kg) |
4.8 lbs (2.2 kg) |
4.8 lbs (2.2 kg) |
| Packed Weight: |
13.2 lbs (6.0 kg) |
13.2 lbs (6.0 kg) |
13.2 lbs (6.0 kg) |
| Display: |
LED |
LED |
LED |
| Voltage: |
1 to 20kV |
5 to 40kV |
10 to 60KV |
| Resolution: |
100V |
100V |
100V |
| Alarm Range: |
2 to 20kV |
5 to 40kV |
10 to 60KV |
Short Circuit
Test Current: |
1.5 mA max. |
500 mA max. |
| Power Supply: |
Gell Cell 3Ah Clip-On |
| Dimensions: |
10.25" x 6.3" x 2.8" (260 x 160 x 70 mm) |
| Alarm: |
Audible |
| Probe Handle: |
Rubber Lead |
| Battery Condition: |
LED Indicator |
|
Industrial Kit
Holiday Detector (P20, P40 & P60) with clip-on power pack, 10-hour charger, spare battery pack (P60 model only), probe handle with 79" (2m) long cable, 2.4" (60mm) connector for flat brush electrodes, 22' (7m) long ground cable with clamp, fan brush, 10" (250mm) wide flat brass wire brush, 18" (450mm) long probe extension, air-operated earphones, shoulder and waist harness, carrying case , operation instructions with conformance certificate.
Pipeline Kit
Holiday Detector (P20 & P40) with clip-on power pack, spare clip-on battery pack, 10-hour charger, probe handle with 79" (2m) long cable, 22' (7m) long ground cable with clamp, fan brush, coil joiner with 18" (450mm) long probe extension, air-operated earphones, shoulder and waist harness, carrying case , operation instructions with conformance certificate. |
|
|
