RFSE
On-Line Tension Sensor With Built-In Amplifier |

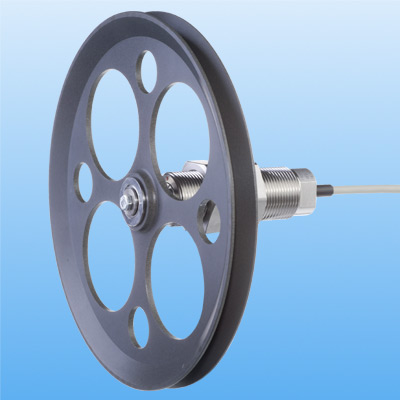

The new CHECK-LINE Model RFSE Tension Sensors measure the running line tensions of yarn, wires, optic fibers, cables, tapes/bands, wraps/webs, foils and similar process materials.
Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection. They are used in a variety of low and high-range applications, such as measuring 1 or 2 grams on fine denier yarns/fibers to applications measuring wire/cable up to 500 Kg.

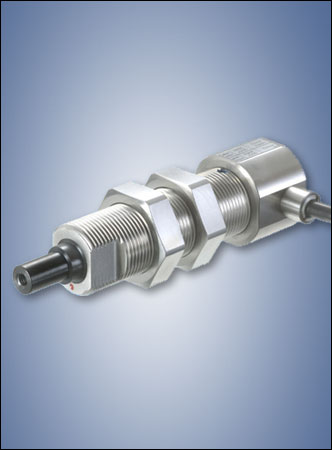

Built-in amplifier provides a 0-10 VDC or 4-20 mA output. This sensor requires an unregulated 24 VDC power source. Requires a "zero" adjustment only.
|
 Integrated measurement amplifier for compact mounting onto the application | | Resolution of 0.1% and better | | Rugged stainless steel housing is environmentally sealed
| | Threaded housing with lock-nuts permits easy mounting and simple alignment |
| | Overload protection up to 800% | | Wide variety of precision, ball-bearing mounted guide rollers are available | | Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available | | Custom sensor designs can be developed to meet specific applications requirements. Inquire. |
|
|
|
| RFS-100 |
0-100 g (0.00-0.22 lbs) |
| RFS-200 |
0-200 g (0.00-0.44 lbs) |
| RFS-500 |
0-500 g (0.00-1.10 lbs) |
| RFS-1K |
0-1 Kg (0.00-2.20 lbs) |
| RFS-2K |
0-2 Kg (0.00-4.40 lbs) |
| RFS-5K |
0-5 Kg (0.00-11.0 lbs) |
| RFS-10K |
0-10 Kg (0.00-22.0 lbs) |
| RFS-20K |
0-20 Kg (0.00-44.0lbs) |
| RFS-50K |
0-50 Kg (0.00-110 lbs) |
| RFS-100K |
0-100 Kg (0.00-220.0 lbs) | | |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | Click image for more info | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | | Click image for more info
|
|
Measuring Principle
|
Strain Gauge
|
|
Accuracy
|
±0.5% Full Scale or better
|
|
Sensor Excitation
|
10 VDC (12 VDC, max.)
|
|
Sensor Output
|
1.5 mV/V
|
|
Input Resistance
|
350 Ohms
|
|
Output Resistance
|
350 Ohms
|
|
Overload Protection
|
400 - 800%
|
|
Deflection
|
0.07mm (max.)
|
|
Housing Material
|
Stainless Steel
|
|
Environmental Protection
|
IP50 (Splash-Proof)
|
|
Cable Type
|
4.5 mm diameter shielded cable with bare leads
|
|
Cable Length
|
10 ft. (3 meter), longer lengths available. Inquire
|
|
Operating Temperature
|
15 to 155° F (-10 to 70° C)
|
|
Sensor Excitation
|
19 - 28 VDC
(24 VDC recommended @ 36 mA)
|
|
Sensor Output
|
0 - 10 VDC (standard)
4 - 20 mA (optional)
|
|
Fequency Responce
|
5 msec (200 Hz)
|
|
Zero Adjustment
|
±45%
|
|
Weight
|
500g
|
|
|
