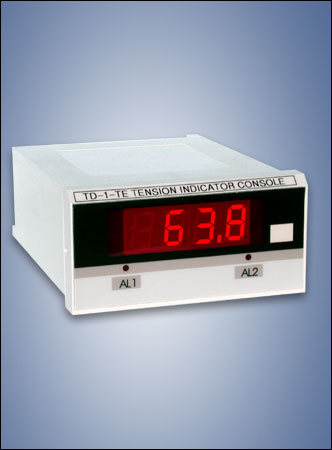

TD-1-TE
Tension Indicator |
 Provides an accurate tension display for all Check-Line sensors on a bright LED display. It is easy to set up and use, and permits easy flush panel mounting in a 1/8 DIN cutout. |

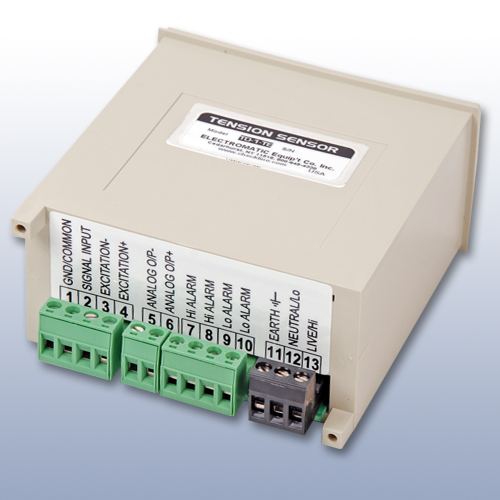

 User-set High & Low Alarm Limits with relays | | TD-1 provides regulated +5 V DC for SR sensors | | 4-20 mA and 0-10 VDC analog output for recording and control purpose |
| | TD-1-TE provides regulated +15 V DC for THR Sensors (requires option "A" on Tension Sensor)
| | Optional Connecting Cable for Sensor |
|
| Display Range |
0-1999 |
| Display |
3½-digit Red LED, 14.4 mm high |

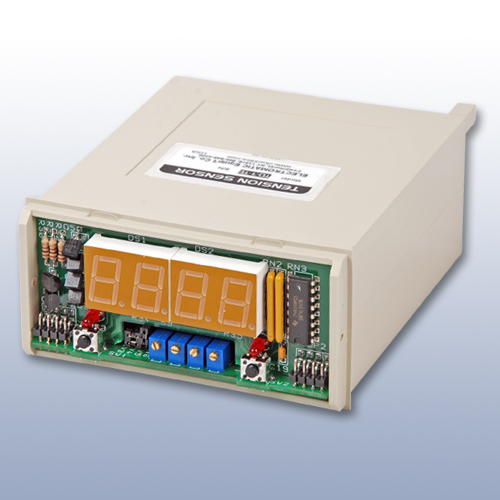

| Decimal Point |

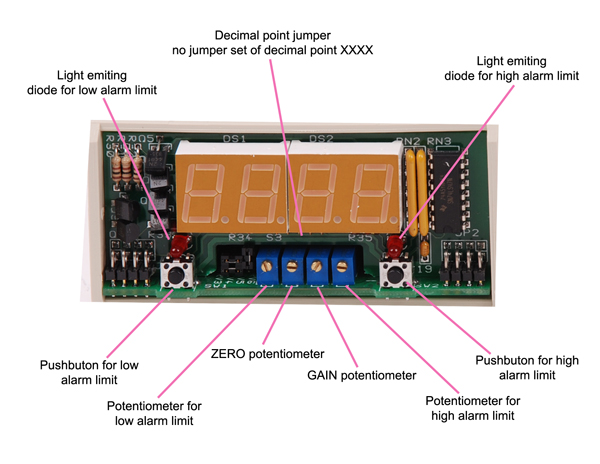

User selected via internal jumper |
| Power For Sensors |
+ 5 V DC, regulated (TD-1)
+ 15 V DC, regulated (TD-1-TE) |
| Analog Output |
4-20 m A or 0-10 V DC, user selected |
| Frequency Response |
100 Hz |
| Enclosure |
High-Impact Plastic |
| Dimensions |
3.78" L x 1.89" H x 4.04" D
(96 x 48 x 103mm) |
| Panel Cutout (TD-1) |
92 x 44mm |
| Operation Temperature |
32 to 122° F (0-50° C) |
| Relay Operation |
Hi-Hi/Hi or Hi-Lo |
| Relay Rating |
1 Amp @ 250 V AC/30 V DC, normally open |
| Power Required |
115/230 VAC ±10%, 50/60 Hz |
|
|
