TD-1-TS
Tension Indicator |

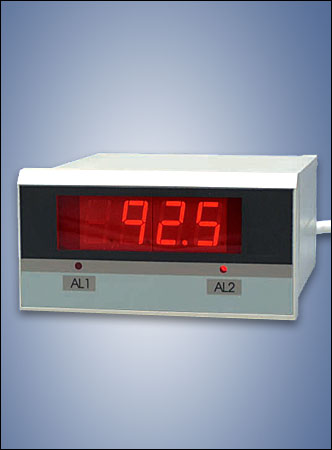

Accurately displays tension values calibrated in any unit of measure on a bright LED display, designed for flush panel mounting.
 Calibration and alarm settings are adjusted using screw poten-tiometers located behind the removable front panel.
|
 Designed for use with the TS621 Strain Gauge Amplifier or the RFSE Tension Sensor | | Provides 24 VDC power for TS621or RFSE |
| | User-set High & Low Alarm Limits with relays | | 4-20 mA and 0-10 VDC analog output (user set) |
|
|
RFS
On-Line Tension Sensor |  |
Resolution of 0.1% and better Rugged stainless steel housing is environmentally sealed
Overload protection up to 800% | | Click image for more info | | ___________________________________________ |
|
TS621
Strain Gauge Amplifier |  |
Designed for use with a wide range of strain-gauge-based force, load and tension sensors
0-10VDC analog output
| | Click image for more info
|
|
Display Range
|
0- 1999 (calibrated for any units)
|
|
Display
|
3 1 /2 - digit Red LED, 14.4mm high
|
|
Decimal Point
|
User-selected via internal jumper
|
|
Power Supply
|
24 VDC @ 100mA
|
|
Analog Output
|
4-20 mA or 0-10 VDC, user selected
|
|
Frequency Response
|
1 Hz (with damping filter)
40 Hz (without damping filter)
|
|
Enclosure Material
|
High-Impact Plastic
|
|
Dimensions
|
3.78" W x 1.89" H x 4.04" D
(96 x 48 x 103mm)
|
|
Panel Cutout
|
92 x 44mm
|
|
Operating Temperature
|
32 to 122° F (0-50° C)
|
|
Relay Operation
|
Hi-Hi/Hi or Hi-Lo
|
|
Relay Rating
|
1 Amp @ 250 VAC/ 30 VDC, normally open
|
|
Power Required
|
115/ 230 VAC + 10%, 50/ 60 Hz
|
|
|
