TI-MMX-SDL
High Performance Data Logging Wall Thickness Gauge |

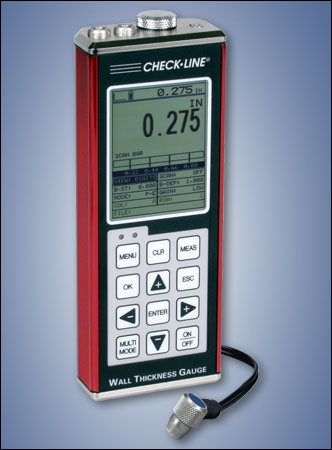

 The new CHECK-LINE TI-MMX-SDL is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.
The TI-MMX-SDL features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. |
 The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material. | | Built in hardware AGC gain control for through paint measurements in multi mode operation. | | The TI-MMX-SDL has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location. | | CE Certified | | Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated. |
| | The TI-MMX-SDL also comes complete with our Windows® PC software for transferring data to and from a PC. | | The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned. | | Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view. | | Includes NIST-Traceable Calibration Certificate | | 2 Year Warranty |
|
| | | The TI-MMX-SDL is supplied as a complete kit with the gauge, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
TRANSDUCER SOLD SEPERATELY |
 |
|
CF12
Coupling Fluid |  |
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | Click image for more info | | ___________________________________________ |
|
NIST-Traceable Steel Test Block
3 Sizes Available |  |
Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | Click image for more info | | ___________________________________________ |
|
Uncertified Steel Test Block
For Ultrasonic Gauges |  |
For convenient confirmation of thickness gauge calibration | | Click image for more info | | ___________________________________________ |
|
TICC-MVX
Protective Holder for Ultrasonic Gauges |  |
Constructed from heavy duty Cordura Nylon Includes wrist & shoulder straps | | Click image for more info | | ___________________________________________ |
|
DataComm
Software |  |
Free data acquisition software | | Click image for more info
|
| Range in Steel: |
Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)
Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thickness of the coating. |
| Resolution: |
.001 inches (0.01mm) |
| Velocity Range: |
.0492 to .3936 in./ms
1250 to 9999 meters/sec |
| Units: |
English & Metric |
| Measurement Modes: |
- Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint) |
| Transducer Types: |
Dual Element (1 to 10 MHz). |
| Memory: |
16 megabit non-volatile ram |
| Memory capacity: |
12,000 pages with 1 reading and waveform per page |
| Power Source: |
Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life: |
Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Auto Power off: |
if idle 5 min |
| Display: |
1/8 in. VGA grayscale display 62 x 45.7mm |
| Keyboard: |
Membrane switch with twelve tactile keys |
| Case: |
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Operating Temperature: |
-14° to 140°F (-10° to 60°C) |
| Weight, net: |
383 grams |
| Dimensions: |
63.5 W x 165 H x 31.5 D mm |
| Warranty: |
2 year limited |
| Certification: |
CE Approved, Factory calibration traceable to national standards |
|
|
Features
