TM-353
Analog Tension Indicator with Built-In Amplifier

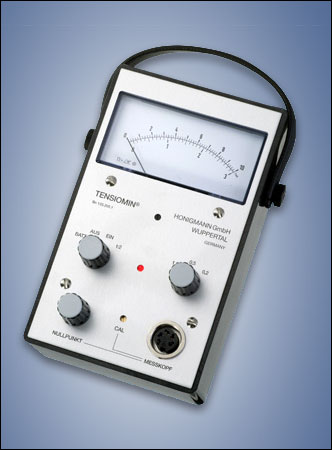

The new CHECK LINE Model TM-353 analog tension indicator features precision electronics for connection to all Capacitive-Based hand-held Tension Sensors.

The scale can be marked with empirical units (0-100%) or, optionally, calibrated to display values in two(2) different tension ranges with any units of measure (grams, cN, daN, Kg, Newtons, etc.)

The analog display, permits the user to quickly observe the range of tension fluctuations, as well as the frequency of change, by viewing the motion of the "sweeping" pointer.

Zero adjustment compensates for all measurement positions

Provides 0-1 VDC analog output for recording purposes

Supplied with 6 ft. (2 meter) cable with high-quality, DIN-style locking connectors at both ends

Three amplification settings are user-selected to provide maximum display resolution

HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors

Real time display of measured values graphically and digitally, indicating the actual value in tension units

Export data in ASCII format

Click image for more info

Scale Marking	0-10 and 0-3 (custom scales are available for any range)
Display Type	Analog Meter
Output	0 to 1 VDC proportional to user-selected full scale range
Amplification	1X, 2X or 5X (connector located on top panel of housing)
Accessories	Sensor connection cable, 6ft long
Battery Type	9V Alkaline
Dimensions	6.2" x 3.8" x 2" (H x W x D) 158 x 96 x 50 mm (H x W x D)
Weight	1.3 lbs (0.6 kg)
