TS481
Strain Gauge Measurement Amplifier

TS481-19
(19" Rack Mounted)

TS481-M
(Surface Mounted)

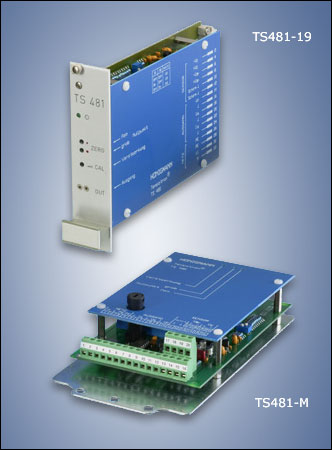

The TS481 Strain Gauge Amplifier Card is designed for use with the RFS/NWS & WTS Tension Sensors. It is offered in two versions: Surface Mounted (M) and 19" Rack Mounted (19).

Galvanic Isolation minimizes the chance for signal interference, including ground faults

Optional "Explosion Proof" configuration

Provides accuracy of ±0.1%

0 - 10VDC analog output is standard. A current output option can be added providing 0-20/4-20mA (option A)

User-enabled "damping function" eliminates tension fluctuations

TS481-SKBI Plug-in card block for TS481-19

	Click image for more info
___________________________________________

HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors

Real time display of measured values graphically and digitally, indicating the actual value in tension units

Export data in ASCII format

Click image for more info

Sensor Types	Strain Gauge, full bridge
Impedance Range	Minimum 150 Ohms
Overall Accuracy	0.1% (any portion of the range)
Power Required	115 VAC, 50/60 Hz For 230 VAC version add "-230" suffix (i.e. TS481-M-230)
Power Supply to Sensor	10 VDC, regulated (±5 VDC referenced to ground)
Calibration Range	60 to 450%
Isolation between I/O	Galvanic Isolation using integrated DC-DC converter between input power & output signals
Power Consumption	100 mA @ 24 VDC
Temperature Coefficient	< 0.05% per °C
Mounting Style	TS481-19: Rack Mount TS481-M: Surface Mount
Connector Types	TS481-19: Blade Contacts, 32 poles per DIN 41612D TS481-M: Screw Terminals
Dimensions (in mm)	TS481-19: 100 x 1600 (3HE/6TE) TS481-M: 107 (L) x 207 (W) x 40 (H)
Weight	TS481-19: 400 grams TS481-M: 600 grams

PDF Data Sheet Click here to download
