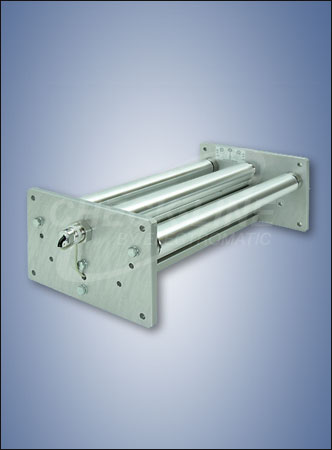

WTM-3R
Web Tension Module 3 Roller Design |
|
 Customer specified roll material | | Labyrinth seals / V-sealing rings | | Customer specified roll dimensions |
| | Easy-running self-aligning bearings in non-locating and locating bearing position | | Pre-assembled, ready to be installed as measuring module |
|
| Model |
Range | Range g/Kg (lbs) |
| WTM-3R-200 |
0-2 N | 0-200 g (0.00-0.44 lbs) |
| WTM-3R-400 |
0-4 N | 0-400 g (0.00-0.88 lbs) |
| WTM-3R-1K |
0-10 N | 0-1 Kg (0.00-2.20 lbs) |
| WTM-3R-2K |
0-20 N | 0-2 Kg (0.00-4.40 lbs) |
| WTM-3R-4K |
0-40 N | 0-4 Kg (0.00-8.80lbs) |
| WTM-3R-10K |
0-100 N | 0-10 Kg (0.00-22.0 lbs) |
| WTM-3R-20K |
0-200 N | 0-20 Kg (0.00-44.0 lbs) |
| WTM-3R-40K |
0-400 N | 0-40 Kg (0.00-88.0 lbs) |
| WTM-3R-100K |
0-1000 N | 0-100 Kg (0.00-220.0 lbs) |
| WTM-3R-200K |
0-2000 N | 0-200 Kg (0.00-440.0 lbs) | | |
|
RFS
On-Line Tension Sensor |  |
Resolution of 0.1% and better Rugged stainless steel housing is environmentally sealed
Overload protection up to 800% | | Click image for more info | | ___________________________________________ |
|
TS621
Strain Gauge Amplifier |  |
Designed for use with a wide range of strain-gauge-based force, load and tension sensors
0-10VDC analog output
| | Click image for more info | | ___________________________________________ |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | Click image for more info | | ___________________________________________ |
|
MU621
Tension Indicator/Amplifier Console |  |
for strain gauge sensors 1 to 4 measuring channels | | Click image for more info | | ___________________________________________ |
|
TD-1-TS
Tension Indicator |  |
Designed for use with the TS621 Strain Gauge Amplifier or the RFSE Tension Sensor Provides 24 VDC power for TS621or RFSE | | Click image for more info | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | | Click image for more info
|
|
|
Features
