ETM2
Limited Access Digital Tension Meter |
3 Ranges
0.5 - 100 g, 1.0 - 200 g, 1.0 - 500 g
2 Models
ETM2 (Basic unit)
ETM2X (with memory and outputs)

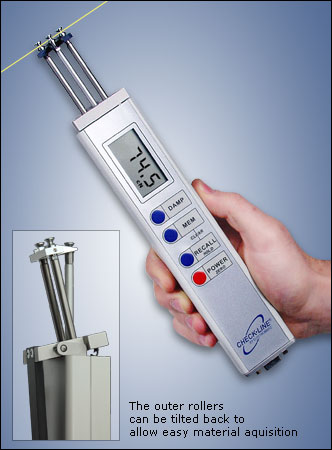

Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.
Choice of miniature, high speed rollers for filament speeds up to 2000 m/min or non-rotating, ceramic pins for speeds to 6000 m/min. Uses part number ETMP2 or ETMP2X to designate model with ceramic pins. |
 User Selectable Units Grams or Centinewtons | | New filament guide for easy acquisition of material | | Reversible display for right or left-hand operation |
| | Choice of miniature, high speed rollers for filament speeds up to 2000 m/min or non-rotating, ceramic pins for speeds to 6000 m/min.
| | Adjustable damping for easier readings when tension fluctuates |
|
| • Storage of MIN, MAX and PEAK tension values which can be recalled or downloaded to a PC
• Output voltages for a recorder, parallel printer or remote display |
| Model |
Range | Resolution |
ETM2-100
ETMP2-100
ETM2X-100
ETMP2X-100 |
0.5-100.0 | 0.1 |
ETM2-200
ETMP2-200
ETM2X-200
ETMP2X-200 |
1.0-200.0 | 1 |
ETM2-500
ETMP2-500
ETM2X-500
ETMP2X-500 |
1.0-500.0 | 1 | | |
| Selectable Units: Grams or Centinewtons |
| |
  |
 |
| Accuracy |
± 1% FS ± 1 digit |
| Minimum Access Space Required |
3/4" x 1" (20 x 26mm) |
| Guide Roller / Pin Material |
Rollers, chrome-plated steel, std : 2000 m/min
Ceramic pins, optional : 6000 m/min |
| Outputs Signal Analog |
ANALOG, 0-2.0 V DC, proportional to tension |
| Outputs Signal Digital |
RS232 (9600, 8,N, 1) |
| Measuring Principle |
Strain-gauge bridge |
| Maximum Sensing-Roller Displacement |
0.5mm |
| Scanning Frequency |
100 / sec., except 40/sec. in PEAK mode |
| Display Update |
0.5 sec. |
| Thermal Drift |
0.25% full scale per degree C |
| Natural Frequency |
250 Hz |
| Over Range |
10% FS, without accuracy guarantee |
| Overload Protection |
200% |
| Temperature Limits |
40-115° F (5-45° C) |
| Automatic Zero |
± 20% of range |
| Rel. Humidity Limit |
95% |
| Battery/Life |
9 volt, long-life lithium (included), non-rechargeable / Approx. 100 hrs. (Note: A standard 9V alkaline battery can be used as a backup, but with greatly reduced life.) |
| Low Battery Voltage Indicator |
LO BAT, or equivalent display |
| Weight |
14 oz. (400 g) |
| Dimensions |
13" x 1-3/4" x 1" (330 x 45 x 25mm) |
| Complete Kit |
Tension Meter, one long-life 9V lithium battery and instructions, all supplied in a foam-fitted carrying case. |
|
|
|
|
