DT-205L - DT-207L
Contact & Non-Contact Tachometer |
DT-205L LCD MODEL
DT-207L LED MODEL
DT-207L-12 LED MODEL with 12 Circ Measuring Wheel
The CHECK-LINE DT-205L & DT-207L combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation. |
 High-precision laser measures from distances up to 14 feet | | Includes NIST calibration Certificate |
| | Built-in memory for last, maximum, minimum and 10 separate readings | | Includes 6" circumference surface speed wheel |
|

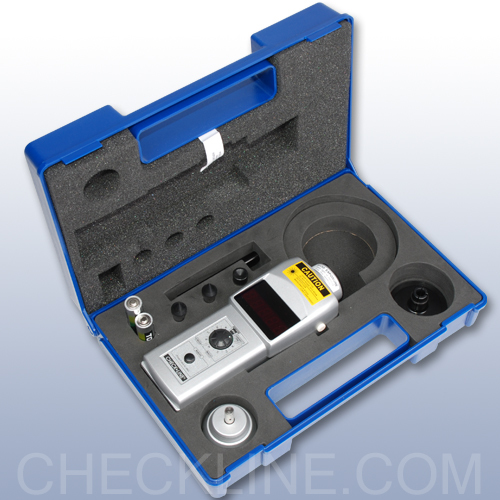

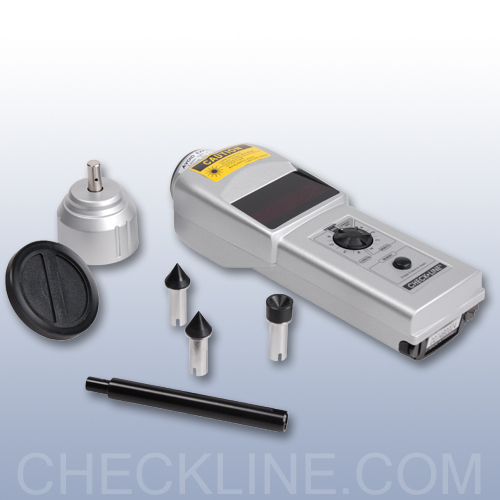

| | | | All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries and an operating instruction manual - all supplied in a foam-fitted carrying case. |
 |
| Measuring Range |
Non-Contact - 6 to 99,999 rpm
Contact - 0.8 to 25,000 rpm |
| Accuracy |
6 to 8,299 rpm: ±1 rpm
8,300 to 24,999 rpm: ±2 rpm
25,000 to 99,999 rpm: ±0.006% rpm |
| Display |

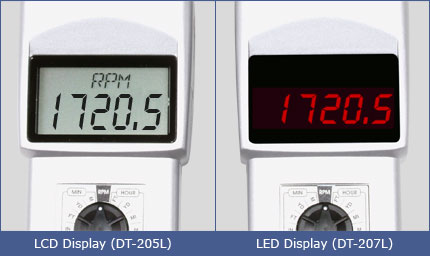

DT-205L (LCD MODEL)
5 digit 0.47" (12mm) high LCD
DT-207L (LED MODEL)
5 digit 0.4" (10mm) high LED |
| Measuring Units |
|
| per Minute |
Revolutions, Meters, Yards, Feet, Inches |
| Total Length |
Meters, Yards, Feet, Inches |
| Measuring Distance |
14 feet (5.2 m) maximum |
| Detection |
Laser Diode, Class II |
| Memory |
13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements) |
| Over-Range Indicator |
Flashing numerals |
| Update Time |
1 second (typical) |
| Batteries |
2 - 1.5 V AA |
| Battery Life |
DT-205L Approx 40 hrs
DT-207L Approx 25 hrs |
| Operating Temp |
32° to 113° F (0 to 45° C) |
| Construction |
Die-cast aluminum housing |
| Weight |
0.8 pounds (365 grams) |

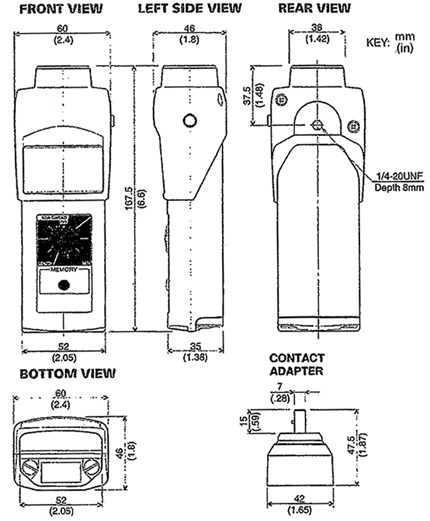

| Dimensions |
6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7) |
| Warranty |
1 year |
| Accessories Included |
Reflective tape, cone adapter, surface speed wheel (6" cir.), 200L contact adapter and carrying case |
|
