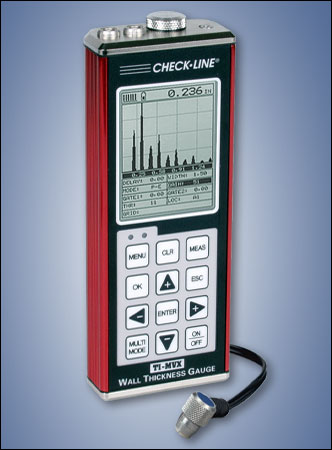

TI-MVX
Ultrasonic Thickness Gauge with Enhanced Display |
 The new CHECK-LINE model TI-MVX offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures.
The TI-MVX features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. It is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.
Try the TI-MVX yourself!
Click here for our TI-MVX Demo
The TI-MVX demo requires Sun Java.®
Click here to download the latest version. |
 The MVX is equipped with multiple viewing
options to provide users with a complete set of
inspection tools: (RF waveform, +/-
Rectified
waveform, Time based B-Scan, and Large Digits). | | The A-Scan rectified mode is commonly used
for detecting flaws/pits in pulse-echo mode
and measuring through paint and coatings in
echo-echo mode. | | The time-based B-Scan feature of the MVX
displays a cross section of the test material.
It is commonly used to display the profile of
the bottom surface of the test material. | | Built in hardware AGC gain control for through
paint measurements in multi mode operation. | | The MVX has the ability to store 64 custom
user defined setups. All factory setups can
be selected, edited and saved to any setup
location. | | CE Certified |
| | Use the visual alarm to set hi and lo limits for
applications requiring specific tolerances.
If the actual thickness value is above or below
the limits, a red light is illuminated. | | Use the find feature to locate the detection
point, while automatically adjusting the display
to bring the signal into view. | | MVX also comes complete with our Windows®
PC software for transferring data to and
from a PC. | | Includes Flaw Inspection - Prove Up Mode, (special probe required) | | The high speed scan feature speeds up the
inspection process by making 32 measurements
per second. Remove transducer from
the tesst material, and display the minimum
measurement scanned. | | Includes NIST-Traceable Calibration Certificate |
|
| | | | The TI-MVX is supplied as a complete kit with the gauge, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
| | | NIST-Traceable Steel Test Block
3 Sizes Available |  | Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | | Click image for more info
|
___________________________________________ |
| | | Uncertified Steel Test Block
For Ultrasonic Gauges |  | For convenient confirmation of thickness gauge calibration | | | Click image for more info
|
___________________________________________ |
| | | CF12
Coupling Fluid |  | Used to create an ultrasonic coupling between the probe and material to be measured | | | Click image for more info
|
___________________________________________ |
| | | V-Block
Transducer Holder |  | The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | | Click image for more info
|
___________________________________________ |
| | | TICC-MVX
Protective Holder for Ultrasonic Gauges |  | Constructed from heavy duty Cordura Nylon Includes wrist & shoulder straps | | | Click image for more info
|
___________________________________________ |
| | | DataComm
Software |  | Free data acquisition software | | | Click image for more info
|
|
|
A-Scan Scan Mode |
B-Scan Mode |
 |
 |
| The A-Scan rectified mode is the preferred
display view for flaw and pit detection applications
and measuring through paint and coatings in the
echo-echo mode. |
The B-Scan view displays a time-based cross
section of the test material. It is commonly used to
display the profile of the blind or underside of a pipe
or tank. |
|
Large Digits |
 |
The Large Digits view provides a
basic digital thickness gauge look and feel. The large
display makes it easy for the operator to monitor the thickness readings. |
|
| Range in Steel*: |
Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)
Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches).
Range will vary +/- depending on the thickness of the coating.
*Range varies by transducer, multiple transducers are required to cover entire range |
| Resolution: |
.001 inches (0.01mm) |
| Velocity Range: |
.0492 to .3936 in./ms
1250 to 9999 meters/sec |
| Units: |
English & Metric |
| Measurement Modes: |
- Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint) |
| Transducer Types: |
Dual Element (1 to 10 MHz). |
| Memory: |
16 megabit non-volatile ram |
| Memory capacity: |
12,000 pages with 1 reading and waveform per page |
| Power Source: |
Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life: |
Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Auto Power off: |
if idle 5 min |
| Display: |
1/8 in. VGA grayscale display 62 x 45.7mm |
| Keyboard: |
Membrane switch with twelve tactile keys |
| Case: |
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Operating Temperature: |
-14° to 140°F (-10° to 60°C) |
| Weigth, net: |
383 grams |
| Dimensions: |
63.5 W x 165 H x 31.5 D mm |
| Warranty: |
2 year limited |
| Certification: |
CE Approved, Factory calibration traceable to national standards |
|
|
