MK

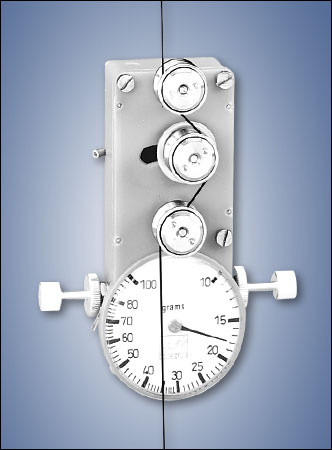

Stationary Tension Meter |
The CHECK-LINE model MK Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continuous tension measurement.
Threaded mounting holes are provided on the back side and edge of the housing |
 Adjustable maximum tension detector contact can provide a low voltage signal when tensions exceed the user-set maximum limit. | | Built-in magnetic damping averages out tension fluctuations. |
| | Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 5000 m/min. |
|
| Model |
Range |
| MK2-12 |
3-12 grams |
| MK2-20 |
5-20 grams |
| MK2-30 |
5-30 grams |
| MK2-50 |
10-50 grams |
| MK2-100 |
10-100 grams |
| MK2-250 |
20-250 grams |
| MK2-300 |
20-300 grams |
| MK2-400 |
50-400 grams | | |
|
|
Features
