CMA03-CH

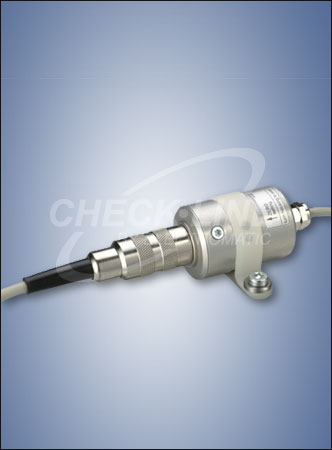

Cable mounted strain gauge measuring amplifier - Cylindrical Housing Design

The measuring amplifier CMA 03-CH is designed for universal use with strain gauge-based sensors. The special mechanical design as a cable mounted measuring amplifier allows a quick and space-saving installation without costly installation work.

CMA 03-CH amplifies the mV-signal of the sensor into the 10V-range. Installing the amplifier near the sensor increases interference resistance on signal transmission, e.g. in large facilities.

Best temperature stability, long-term stability and high accuracy are guaranteed by using modern technology.



 Features

bluedot Compact and robust aluminium flanged housing
bluedot 24V DC power supply, reverse-polarity protected
bluedot Available with voltage output 0 to ±10V or current output 0/4 to +20mA, unipolar
bluedot Fixed connection between sensor and amplifier
bluedot Great noise immunity and service reliability for use in rough industrial operation

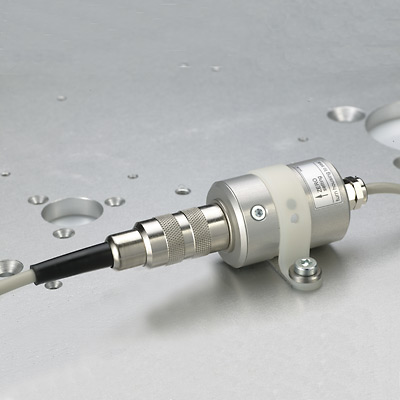

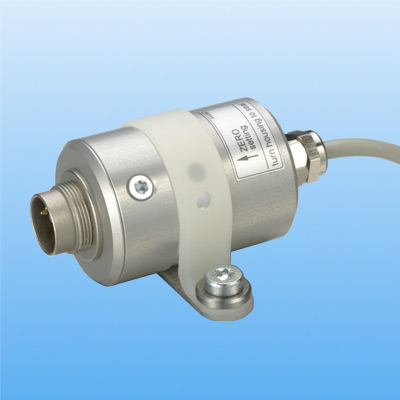

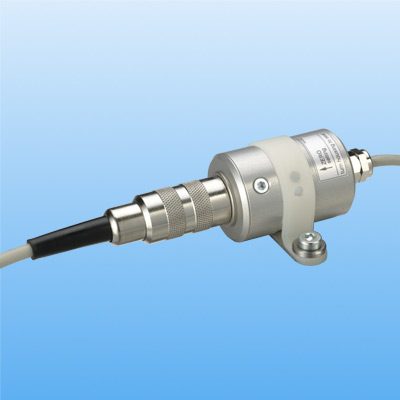

 Photo Gallery - click any photo to enlarge

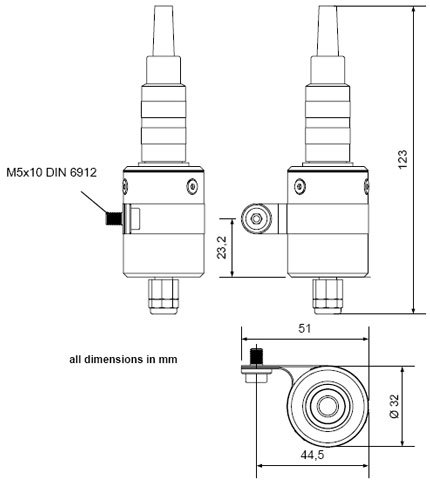

 Dimensions

dimensions
