DPM-PCS-02
Digital Panel Meter |

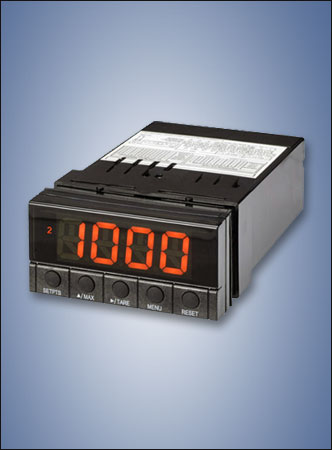

The Digital-Panel-Meter DPM-PCS-02 is a 4-digit meter with a bright, 21mm high LED-display.
It offers good readability even from long distances.
The optional limited value transducer is ideal for the monitoring of tension signals.
Adjustments for scale, decimal point, min-/max-limited values and display colour are done via the front-side pushbuttons. |
 comfortably adjustable display, in the proper unit of measure | | programmable via front-side pushbuttons | | MAX-value memory | | adjustable decimal point | | display range -1999 to 9999 digit | | multi-level programming interlock | | limited value transducer MIN / MAX (optional) |
| | programmable display colour: red, green or amber | | connection by removable screw terminal plug | | supply voltage AC: 230V AC or 115V AC | | supply voltage DC: 10 to 32V DC, galvanically isolated | | DIN front dimensions 96 x 48mm | | IP65 front side (optional) |
|
|
|
Features
