Measuring amplifier unit for field installation

Photo Gallery
Related Products
Downloads

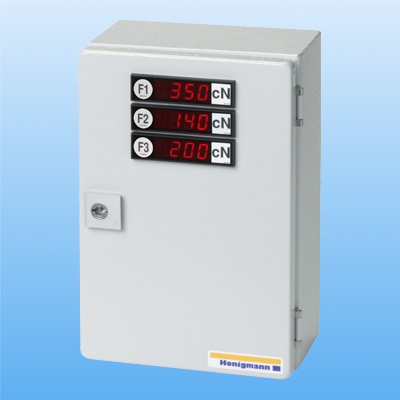

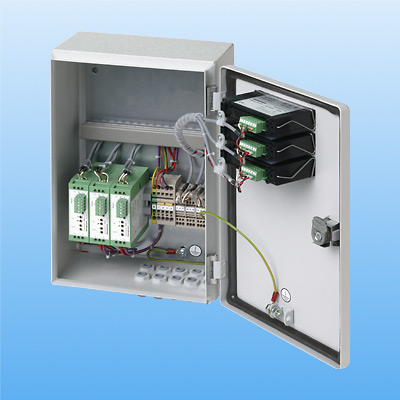

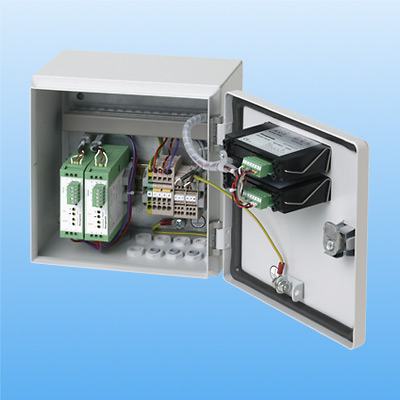

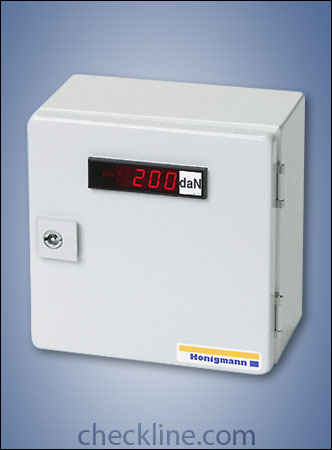

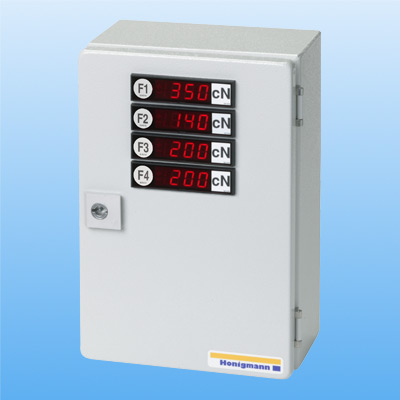

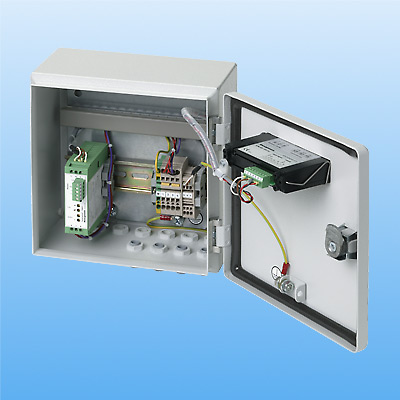

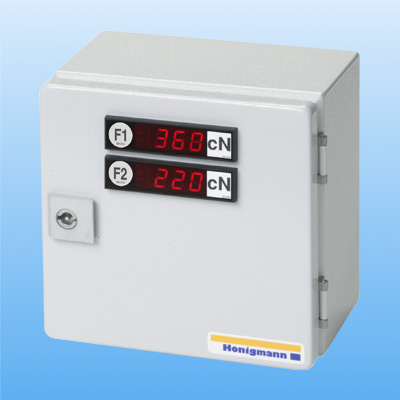

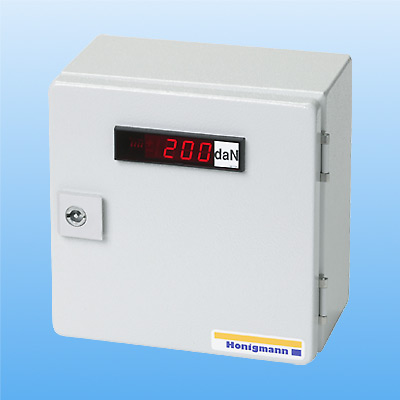

MU621
Tension Indicator/Amplifier Console

• for strain gauge sensors
• 1 to 4 measuring channels
• includes TS621 Amplifier and DPM502 Indicator
• scalable to all engineering units
• requires 24V DC power
• rugged industrial design in steel plate-housing
