SC Series
Tension Indicator |

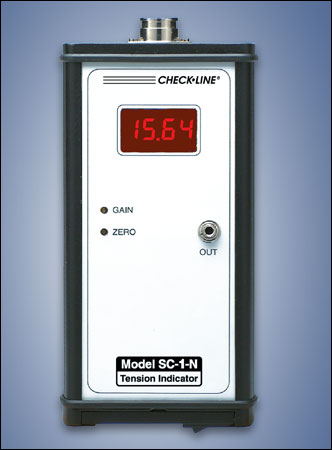

SC-1-N (1 Channel)
SC-2-N (2 Channel)
SC-3-N (3 Channel)
The new SC Series Tension Indicators permit the user to connect from one to three THR 3-Roller Tension Sensors. The SC indicators provide a regulated DC power source for the sensors and include a 3-1/2 digit LED tension display, calibration adjustment pots and 0-10 VDC analog outputs.
|
 Supplies separate 0-10 VDC analog output for each channel | | Adjustable output frequency of 1.6/3.3/15/330 Hz.
| | Front panel calibration adjustment pots for each channel |
| | Includes wall-mounted bracket | | Includes AC-Adapter, 115 VAC (for 230 VAC, add "-220" suffix) |
|
| Display Ranges |
0-50.0, 0-100.0, 0-199.9, 0-500, 0-1000, 0-1999, 0-2.00, 0-5.00, 0-10.00 and 0-19.99, switch selectable |
| Units of Measure |
grams, cN or volts |
| Power for Sensors |
±12 V DC |
| Analog Output |
0-10 V DC, proportional to tension |
| Frequency Response |
1.6, 3.3, 15 or 330 Hz, selectable |
| Enclosure |
Extruded aluminum |
| Dimensions |
7.5 x 4.2 x 1.3" (190 x 106 x 34mm) |
| Power Required |
9-15 V DC or 9-15 V AC (supplied with AC-Adaptor) |
| Operating Temp. |
32 to 120° F (0 to 45° C) |
| Accessories Included |
AC Adaptor, Mounting bracket, output plugs (3) and instruction manual |
|
|
