SC-PM
Display Unit |
2 Available Models
| SC-PM |
Sensors with measuring amplifier |
0 - 10 V DC, Open Collector |
| SC-PMD |
Sensors without measuring amplifier |
0 - 10 V DC, Open Collector |
Panel mount digital display (1/8 Din Cutout), RS 232 output signal, analog output and user-set MIN and MAX alarm limits. All tension sensors series TS and LTS with analog output signal 0 - 1 V can be connected.
3 different calibrations for customer supplied material can be saved at this display unit
Available with digital output for data processing with PC

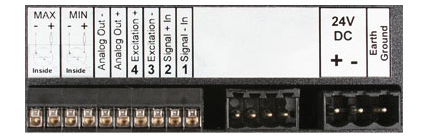

Rear Panel of Indicator: Terminal strip for power supply, output signals (RS 232, 0 - 10 V DC, Open Collector) |
 Connection of series TS and LTS with analog output 0 - 1 V DC, optionally series without integrated amplifier | | User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit | | Adjustable damping for easier reading if tension fluctuates | | Panel mounted digital display | | Display unit with Dotmatrix LCD display, 12 mm high with backlight |
| Interfaces:
Analog: 0 - 10 V DC (standard)
Digital (optional): RS 232 or RS 422
Current (optional): 4 - 20 mA (instead of 0 - 10 V DC output) | | Adjusting and storaging of 3 different materials | | Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph) | | Adjustment for connected sensor (Zero and Gain) | | CE certified with sensor connected |
|
Standard
 |
analog 0 - 10 V DC
open collector |
Code A3
 |
4 - 20 mA instead of 0 - 10 V DC
open collector |
Code 232
 |
digital RS-232
analog 0 - 10 V DC
open collector
Up to 100 readings can be transfered per second |
Code 422
 |
digital RS-422
analog 0 - 10 V DC
open collector
Up to 100 readings can be transfered per second |
| Click picture for more information |
|
| | | | Display unit with transport packaging, 1 connecting cable (3 m long), operating instruction in English and German, Certificate of Compliance with the order 2.1 according EN 10204 |
 |
|
Digital display
|
Dotmatrix LCD, 12 mm high with backlight
|
|
Measuring to be measured units
|
cN, daN, g or kg selectable depending on range
|
|
Selectable Damping
|
9 adjustable settings (electronic damping, moving averaging)
|
|
Output signal
|
analog: 0 - 10 V DC /R (Last) ¡Ã 5k§Ù
digital (option): RS 232 or RS 422 (19200, 8, N, 1), 100 measurings/s
current (option): 4 - 20 mA instead of 0 - 10 V DC
|
|
Input signal
|
0 - 1 V DC, option mV
|
|
Alarm limits
|
Programmable MIN/MAX limits with LED
|
|
Alarm output
|
Open Collector max. 30 V DC, 10 mA
|
|
Adjustment
|
Storage for 3 different materials (standard adjustment + 2 customer supplied materials)
|
|
Power supply
|
15 - 24 V DC, 100 mA
|
|
Temperature range
|
10 - 45° C
|
|
Air humidity
|
85 % RH, max.
|
|
Housing
|
Plastics
|
|
Dimensions
|
115 x 95 x 48 mm (LxWxH), mounting cut out 92 x 44 mm
|
|
Weight, net (gross)
|
Approx. 300 g (Approx. 1000 g)
|
|
|
