Roller Guide

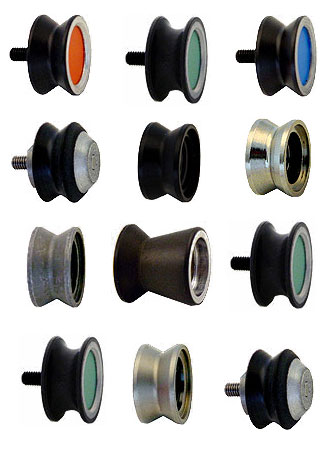

Available Rollers for Hand-Held Tension Meters

Standard Roller
R12005

hard coated aluminum
for line speeds up to max. 2000 m/min

Code K
R12008

hard coated aluminum
for line speeds up to max. 3500 m/min

Code H
R12308

hard coated aluminum
for line speeds up to max. 5000 m/min

model DX2-120 and higher

Code T
R12111

plastic (POM) black
for line speeds up to max. 1000 m/min

Code W
R12110

nickel-plated steel
for line speeds up to max. 1000 m/min

Code ST
R12116

hardened steel
for line speeds up to max. 1000 m/min

Code B
R12118

tempered steel
for line speeds up to max. 1000 m/min

Code AS
R12232

hard coated aluminum
for line speeds up to max. 1000 m/min

gauge without filament guide
(model DX2-120 and higher)

Code R3
R12006

hard coated aluminum
for line speeds up to max. 2000 m/min

Tape Roller
7mm

nickel-plated steel
for line speeds up to max. 1000 m/min

Tape Roller
10mm

hardcoated aluminium
for line speeds up to max. 1000 m/min

Tape Roller
15mm

hardcoated aluminium
for line speeds up to max. 1000 m/min

Tape Roller
20mm

hardcoated aluminium
for line speeds up to max. 1000 m/min

Tape Roller
30mm

hardcoated aluminium
for line speeds up to max. 1000 m/min

Tape Roller
36mm

hardcoated aluminium
for line speeds up to max. 1000 m/min

Tape Roller
41mm

hardcoated aluminium
for line speeds up to max. 1000 m/min

Tape Roller
50mm

hardcoated aluminium
for line speeds up to max. 1000 m/min
