132

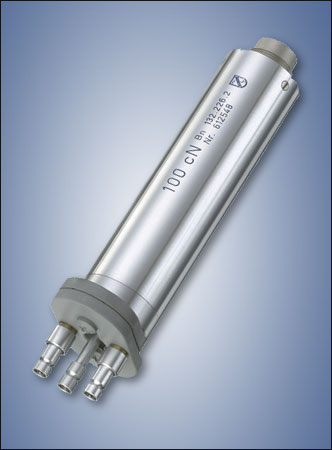

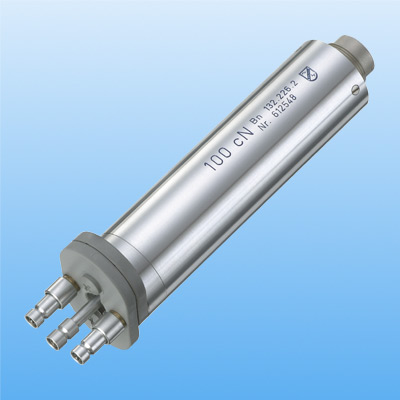

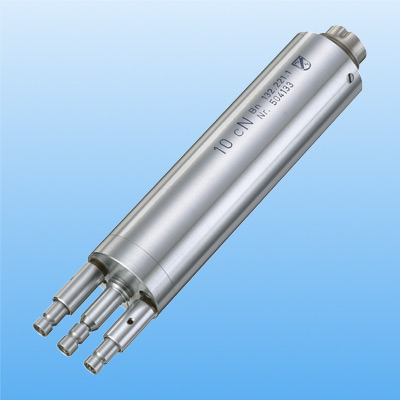

Precision Tension Meter |

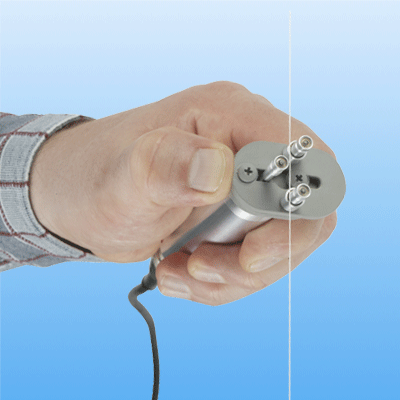

The 132 series tension meters are equipped with easy-turning guides, running on ball bearings, were developed especially to measure tensile forces in fine, sensitive and elastic materials |
 For measuring sensitive and elastic yarns, rubber threads, healds, hollow fibers,
fine wires and magnetic tapes | | very small deflection angle of 15° | | minimum parasitic influences on the product being measured | | reproducible measuring results even when dealing with difficult products such as
elastic strands and rubber thread |
| | for speeds up to 1200 m/min | | 3 ball-bearing aluminium rollers with V-groove, root diameter 2mm | | minimum deflection of the product being measured |
|
| Model |
Range |
| 132-10 |
0 - 10g |
| 132-20 |
0 - 20g |
| 132-30 |
0 - 30g |
| 132-50 |
0 - 50g |
| 132-100 |
0 - 100g |
| 132-200 |
0 - 200g |
| 132-300 |
0 - 300g | | |
|

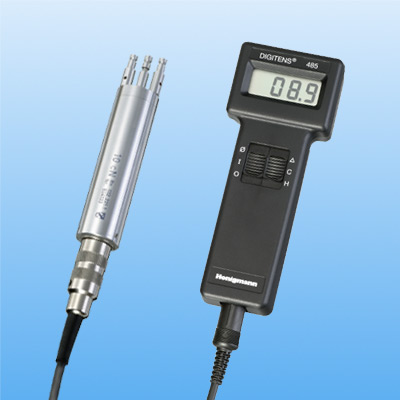

D-485
Digital Tension Indicator with Built-In Amplifier |  |
Automatic zero setting "Peak" function retains maximum reading on display | | Click image for more info | | ___________________________________________ |
|
TM-353
Analog Tension Indicator with Built-In Amplifier |  |
Provides 0-1 VDC analog output for recording purposes | | Click image for more info | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | | Click image for more info
|
|
|
