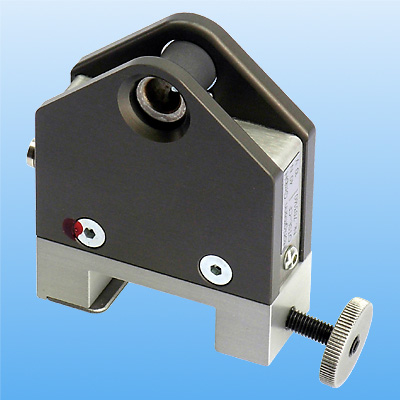

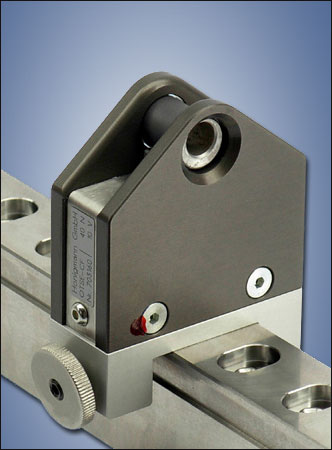

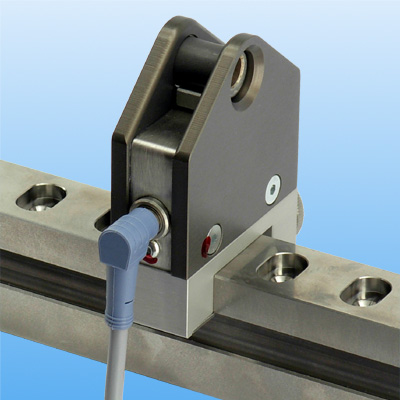

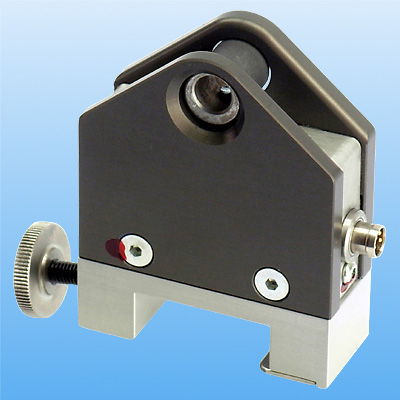

OTSE-CF
On-line Tension Sensor |

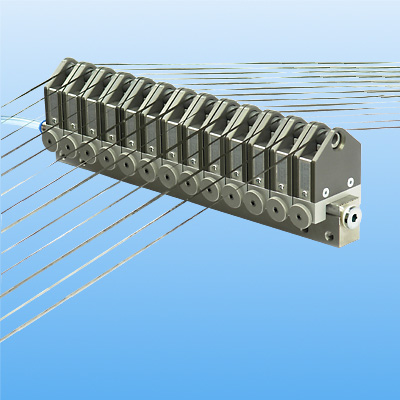

The sensor OTSE-CF is designed especially for tension measurement on fiber ribbons and fiber bundles, e.g. Carbon Fiber (CFK).
The compact design and the stackability allow an easy integration into a production line, e.g. behind an unwinding creel.

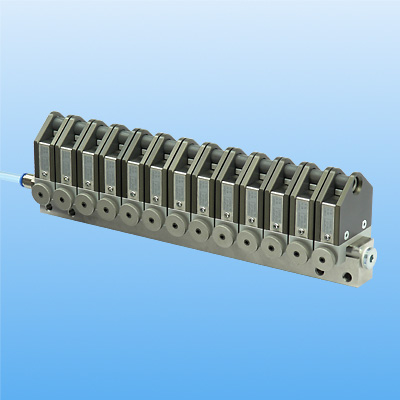

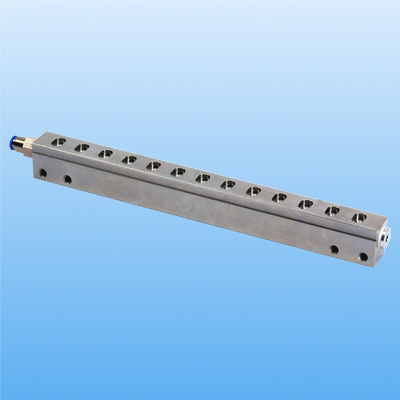

Any grid spacing and grouping is realizable by customizing the carrier rail. |
 compact design - only 22 mm wide | | very high overload protection | | definite product guidance and gentle surface coating | | exchangeable sliding sleeve | | robust aluminium housing |

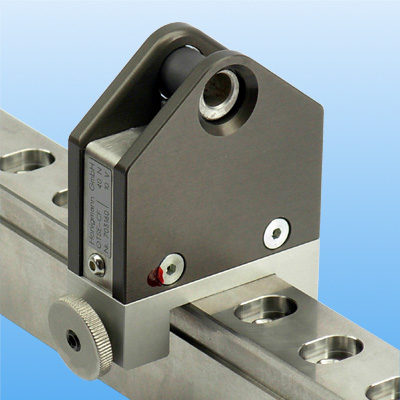

| | measures precisely and long-term stable | | geometry and surface of the sliding sleeve is optimized for carbon fiber bundles | | built-in measuring amplifier | | sophisticated system for easy installation on a carrier rail | | optional sealing gas connection |
|
|
CTA
Compact Torque Actuator |  |
continuous adjustment of the braking force, electromotive adjusted brake torque remains even without external power supply | | Click image for more info
|
|
|
Features
