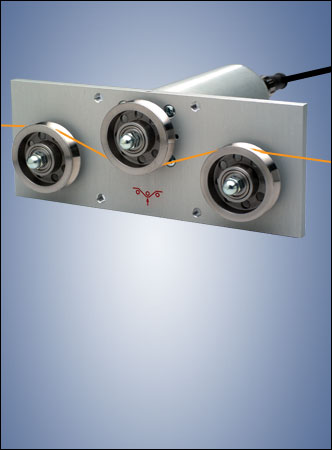

Heavy-Duty Tension Sensor

TE-24
Heavy-Duty Tension Sensor

6 Tension Ranges
0-1000 g up to 0-50.0 Kg

Heavy-duty, hardened steel rollers makes this model especially suitable for tire cord, wires and similar filaments to high-impact loading.

Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Precision strain gauge sensing for highest accuracy and repeatability

30 mm hardened steel rollers are rated for linear speeds up to 2400 m/min

0-1 V DC output, proportional to tension (0-10 V DC optional)

Optional 10 ft. cable, TE-CABLE-CN is recommended. Longer lengths are available.

Surface mount electronics provide long-term reliability

Frequency response of 100 Hz

Custom configurations can be supplied to meet nearly any application requirement

Sensor can be easily mounted using four holes in front panel or using a “collar” around the cylindrical sensor body.

*Can be supplied with a “B” configuration with low material deflection for wire applications.

TD-1-TE
Tension Indicator

User-set High & Low Alarm Limits with relays

TD-1 provides regulated +5 V DC for SR sensors

4-20 mA and 0-10 VDC analog output for recording and control purpose

Click image for more info

Accuracy	± 1.5% FS or better
Sensor Excitation	12 - 24 VDC, 21mA
Middle Roller Deflection	0.5 mm (maximum)
Sensor Output	0-1 V DC (standard) 0-10 V DC (optional) proportional to tension
Overload Protection	200% FS
Housing Material	Aluminum
Spacing of Outer Rollers	See PDF - Click To Download
Roller Diameter (Root)	29.5 mm
Roller Material	Hardened Steel
Maximum Linear Speed	2400 m/min
5000 m/min	40 to 105° F (5-40° C)
Frequency Response	100 Hz

PDF Data Sheet w/Dimensions Click here to download
