TERX
Tape & Band Tension Sensor |
5 Tension Ranges
0-100 g up to 0-2000 g

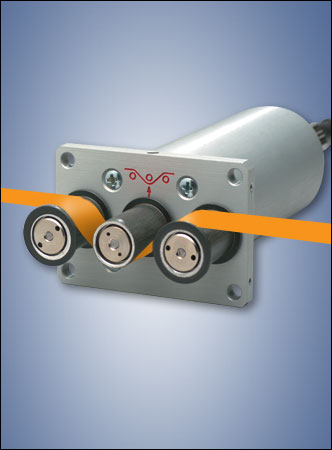

Dual-flanged, cylindrical rollers are ball bearing mounted to provide a friction-free path for tapes, bands and narrow webs/warps up to 30mm wide. TERX Tension Sensors are offered with roller width of 7, 10, 15, 20 and 30mm. |
 Roller shells are available in aluminum, chrome-plated and plastic | | Frequency response of 100 Hz | | Precision strain gauge sensing for highest accuracy and repeatability |
| | Optional 5ft. connecting cable. | | 0-1 V DC output, proportional to tension (0-10 V DC optional) | | Surface mount electronics provide long-term reliability |
|
| Model |
Range | Outer Roller Spacing c:c |
| TERX-100-YY |
0-100 g | 40 mm |
| TERX-200-YY |
0-200 g | 40 mm |
| TERX-500-YY |
0-500 g | 40 mm |
| TERX-1K-YY |
0-1000 g | 40 mm |
| TERX-2K-YY |
0-2000 g | 100 mm | | |
|
TD-1-TE
Tension Indicator |  |
User-set High & Low Alarm Limits with relays TD-1 provides regulated +5 V DC for SR sensors 4-20 mA and 0-10 VDC analog output for recording and control purpose | | Click image for more info | | ___________________________________________ |
|
Roller Guide
Available Rollers for Hand-Held Tension Meters |  |
| | Click image for more info
|
| Accuracy |
± 1.5% FS or better |
| Sensor Excitation |
12 - 18 VDC, 21mA |
| Middle Roller Deflection |
0.5 mm (maximum) |
| Sensor Output |
0-1 V DC (standard)
0-10 V DC (optional
proportional to tension |
| Overload Rating |
150% FS |
| Housing Material |
Aluminum |
| Maximum Linear Speed |
1000 m/min (standard)
3000 m/min (k) (optional) |
| Roller Diameter (Root) |
13 mm |
| Roller Material |
Al (standard)
Chromed-Plated Steel (ST) (optional)
Plastic (PL) (optional) |
| Frequency Response |
100 Hz |
| Operating Temperature |
40 to 105° F (5-40° C) |
|
|
