MKM
Mechanical Tension Meter |

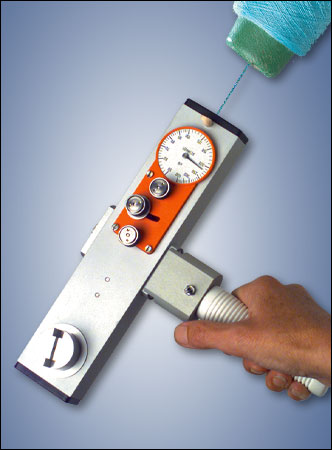

Check-line's MKM Tension Meter with take-up wheel, for for setting yarn tension devices. |
 Motorized take up wheel for constant take-up speed (take-up speed ~16 m/min) | | Handle can be reversed for using the instrument comfortable in all positions |
| | Motor, rechargeable battery operated | | Everything in operator's view: the guide rollers, the measured material, the display |
|
| Model |
Range |
| MKM-50 |
10-50 g |
| MKM-100 |
10-100 g |
| MKM-400 |
50-400 g | | |
| Other tension ranges available on request.
Other units of measure available, such as cN |
| |
| Accuracy |
±1% full scale (FS) or ±1graduation on scale |
| Scale diameter |
41mm |
| Battery |
9 V E-Block, rechargeable (charger included) |
| Operating Temperature |
10-45șC |
| Housing material |
Tension meter: Plastic (Makrolon)
Frame: Aluminium |
| Operating Temperature |
32 - 104° F (0-40° C) |
| Dimensions |
225 x 50 x 30 mm (LxWxH) |
| Weight |
400 g (1000 g) |
| | | | Unit supplied as complete kit with hard plastic carrying case, operating instructions and batteries |
 |
|
|
