SMX
Torque Socket Transducer |

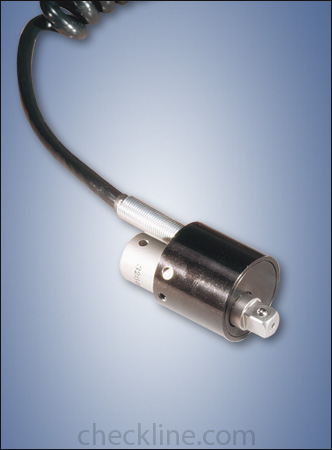

Connect the SMX to the square drive of a wrench and monitor the torque applied.
Requires PTT or LTT torque display units. |
 Accuracy +/-.25% of full scale. | | Bi-directional. | | Converts any ratchet wrench into a torque sensor. |
| | Various models that range 2.5 lbf.in to 500 lbf.ft. | | Compact and robust housing. | | Ideal for applications with limited space accessibility. |
|
| Model |
Range | Sq. Drive |
SMX25i | 2.5 - 25 Lb-in | 1/4" |
SMX50i | 5 - 50 Lb-in | 1/4" |
SMX100i | 10 - 100 Lb-in | 1/4" |
SMX50F | 5 - 50 Lb-ft | 3/8" |
SMX200F | 10 -100 Lb-ft | 1/2" |
SMX500F | 50 - 500 Lb-ft | 3/4" |
| |
Alternative Unit Calculator- recasts values in above table
(units in RED can be selected on gauge. Other units for reference only)
|
|
Wizard Plus
PDA Torque & Force Analyzer |  |
Easy to use “Windows” and “Pocket PC” software for Torque and Force measurement. Seamless transfer of data, graphs and SPC results to Microsoft Excel. | | Click image for more info
|
| Rated Output |
2 mv/v Nominal |
| Zero Balance |
± 2% of Rated Output |
| Safe Overload |
125% of Rated Output |
| Excitation (VDC or VAC) |
10 Recommended, 18 Max. |
| Bridge Resistance |
1000 ohms Nominal |
| Nonlinearity |
±.2% of Rated Output |
| Operating Temp. |
-40 to 180°F (-40 to 82°F) |
|
|
Features
