STC
Torque Sensor for Tool Calibration

The STC has been replaced by the R52. Please click here to view the new model

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

BGI sold seperately.



 Features

bluedot Rugged aluminum housing
bluedot 3 Year Warranty
bluedot May be used for torque tool calibration or as a component of a torque testing system
bluedot NIST-traceable certificate of calibration included
bluedot 1/4" Female Square Drive on all models.


 Force Ranges

Model CapacitySafe Overload
STC10Z 10 oz-in
7 kg-mm
7 N-cm
300% of capacity
STB-20Z 20 oz-in
14 kg-mm
14 N-cm
300% of capacity
STC-50Z 50 oz-in
36 kg-mm
35 N-cm
300% of capacity
STC-12 12 lb-in
140 kg-mm
135 N-cm
150% of capacity
STC-50 50 lb-in
580 kg-mm
570.0 N-cm
150% of capacity
STC-100 100 lb-in
1150 kg-mm
1150 N-cm
150% of capacity

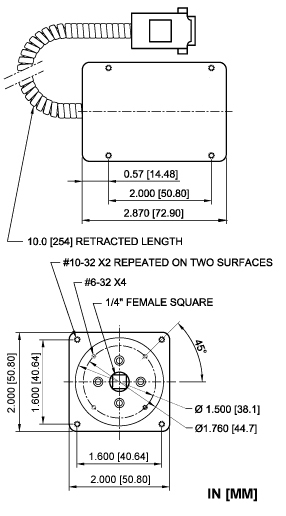

 Dimensions

dimensions


 Specifications

Accuracy ± 0.35% of full scale ±1 digit + BGI
Weight 1.2 lbs (0.5 kg)
Warranty 3 years


 Related Products


BGI
Remote Sensor Force / Torque Gauge
related

bluedot Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

bluedot Unlimited number of sensors possible due to unique design

bluedot RS-232, Mitutoyo and analog outputs

 Click image for more info


 Downloads

manual  PDF Instruction Manual  Click Here to Download
