MGT
Digital Torque Gauge |
As November 2011 the MGT has been replaced by the Series-TT03, click for more info

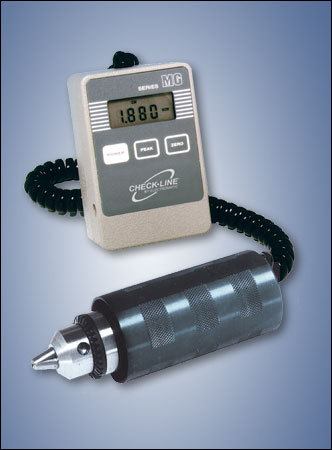

 The MGT Torque Gauge is an rugged solution for most torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture.  The MGT is available in a wide variety of capacities, from 12 lbf-in to 100 lbf-in. |
 Display "real-time" or "peak" force | | Units of measure: lbf-in, kgf-mm, and N-cm (selectable) | | Battery life: 30 hours of continuous operation | | Push-button calibration |
| | Includes NIST-Traceable calibration certificate | | Battery or AC operation | | 3 Year Warranty |
|
| Model |
Capacity | Resolution |
| MGT-10Z |
10 oz-in
7 kg-mm
7 N-cm | 0.01 oz-in
0.005 kg-mm
0.005 N-cm |
| MGT-20Z |
20 oz-in
14 kg-mm
14 N-cm | 0.02 oz-in
0.01 kg-mm
0.01 N-cm |
| MGT-50Z |
50 oz-in
36 kg-mm
35 N-cm | 0.05 oz-in
0.05 kg-mm
0.05 N-cm |
| MGT-12 |
12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm |
| MGT-50 |
50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm |
| MGT-100 |
100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm | | |
| Note: For 220V operation add suffix E to model number. Example: MGT50E |
| |
|
Chuck Sizes |
|
MGT Model |
10Z |
20Z |
50Z |
12 |
50 |
100 |
|
Size |
9.5mm / 0.375" |
12.7mm / 0.500" |
|
Min/Max Sample
Diameters |
|
Chuck Size |
Min Sample |
Max Sample |
|
9.5mm / 0.375" |
1.5mm / 0.062" |
9.5mm / 0.375" |
|
12.7mm / 0.500" |
2.0mm / 0.078" |
12.7mm / 0.500" |
|
| | | | The MGT torque gauges are supplied in a cushioned carrying case with AC adapter, battery, chuck key, user's manual, and NIST certificate of calibration |
 |
|
Series-TT03
Digital Torque Meter |  |
Peak memory for clockwise and counter clockwise readings saved and displayed High-speed 2,000 Hz sampling rate | | Click image for more info | | ___________________________________________ |
|
HTG2
Digital Torque Gauge with programmable setpoints |  |
Display "real-time" or "peak" force | | Click image for more info | | ___________________________________________ |
|
DIS-RL
Torque Screwdriver Digital Lightweight Tester |  |
Peak, Real Time and Peak Down measuring mode (selectable) Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F) 800 peak data memory for recall or for SPC download | | Click image for more info | | ___________________________________________ |
|
DID-4
Digital Torque Screwdriver |  |
Peak, Real Time and Peak Down measuring mode (selectable) Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use USB data output for SPC capability | | Click image for more info
|
| Accuracy: |
± 0.5% of full scale ±1 digit |
| Sampling Rate |
30 times/s |
| Overload capacity: |
150% of capacity |
| Power supply: |
9V battery or AC adapter |
| Housing dimensions |
See Drawing |
| Weight |
1.8 lbs (0.8 kg) |
| Warranty |
3 Years |
|
|
