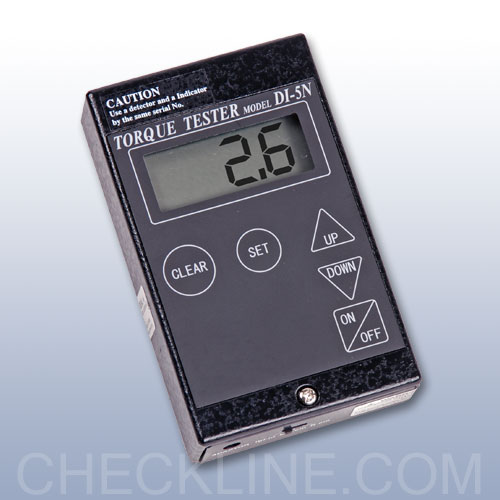

The DI-5N-TW20 Digital Torque Tester is ergonomically designed, extremely lightweight and good for use as a production tool. It tightens or loosens bolts up to 180 lbf-in., yet can be used in difficult to reach places. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

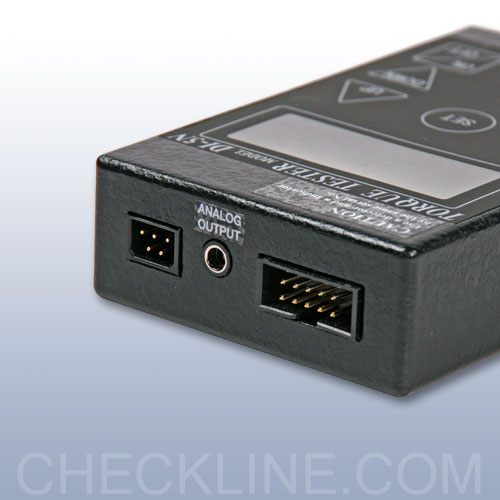

This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port.

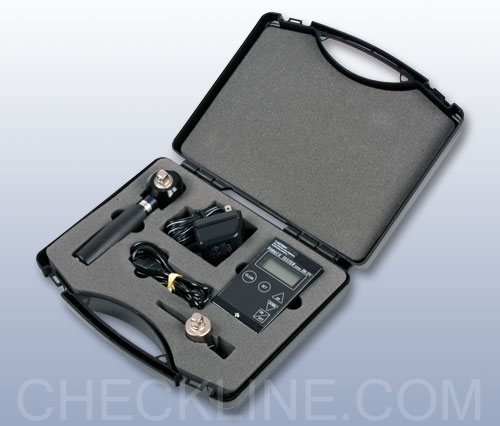

DI-5N-TW20 substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, wrench with cable, stepless oneway clutch, AC adapter/charger and carrying case.
