Simple

• Large, easy-to-read, graphics LCD with multilingual support
• Enhanced one-handed menu navigation
• Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
• Smart Couple™ - eliminates inadvertent decoupling- ideal for analyzing large areas using multiple passes
• Flashing display - ideal for noisy environment
• RESET feature instantly restores factory settings

Durable

• Solvent, acid, oil, water and dust resistant - weatherproof
• Impact resistant lens
• Wear-resistant probe tip

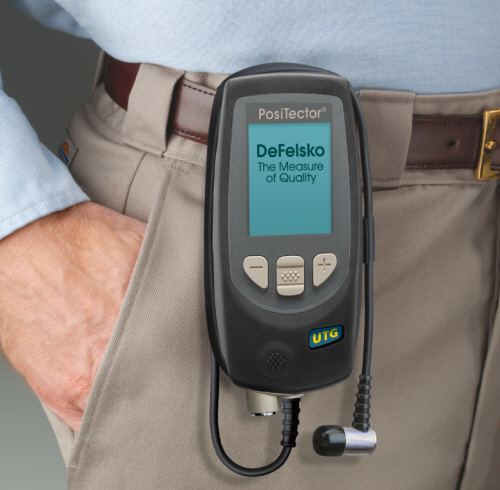

• Shock-absorbing, protective rubber holster with belt clip
• Two (2) year warranty on both body and sensors

Accurate

• Precision ultrasonic transducers provide fast, accurate readings

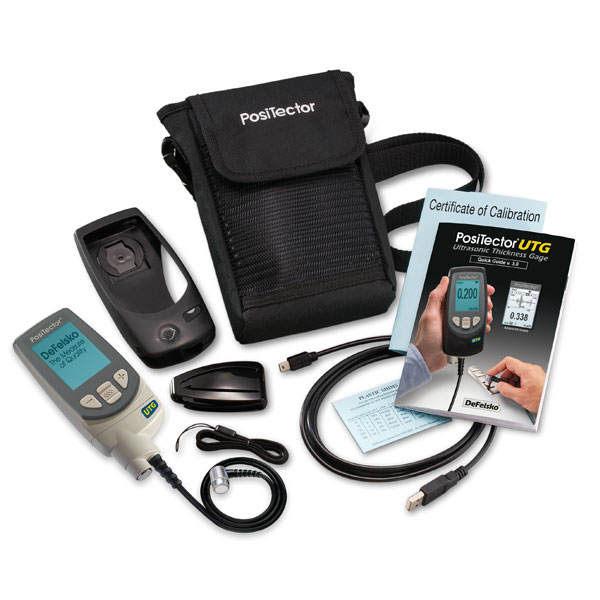

• Certificate of Calibration (Long Form) showing traceability to NIST included
• Conforms to national and international standards including ASTM E797
• Built-in temperature compensation ensures measurement accuracy

Versatile

• Gage body accepts all PosiTector UTG (wall thickness), SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes
• Hi Contrast backlit display for bright or dark environments
• Single or two point adjustment
• Inch/mm switchable
• Display Languages: English, French, German, Spanish, Japanese, Chinese, Korean, Dutch, Portuguese, Italian, Norwegian, Russian, Czech, Polish and Turkish.
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful

• Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
• Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• Every stored measurement is date and time stamped
• Software updates via web keep your gage current
• Multiple measurement download/transfer options:
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
• USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
• PosiTector.net - a free web-based application offering secure storage of thickness readings
• PosiSoft Software Compatible - Continue using the familiar legacy software you have used for years. Available as a free download.
• Screen Capture -record and save image into USB flash memory for record keeping and review

Step 1: Select a body

Standard (1)	Advanced (3)

Feature	Standard (1)	Advanced (3)
Hi Contrast LCD Display	Monochrome	Color
Reading Storage Capacity	250 in one group	100,000 in up to 1000 groups
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
Min Scan - measurement rate of up to 20 readings per second with on-screen min and max for quick inspection over a large area

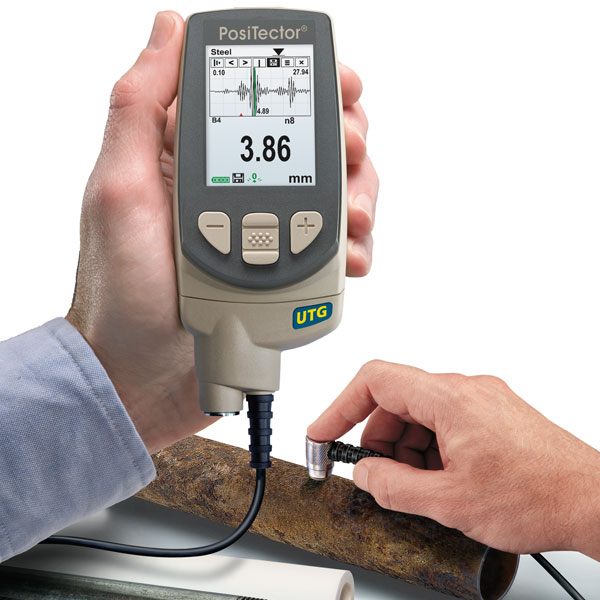

A Scan - with adjustable Gain with screen capture for further analysis and documentation	-

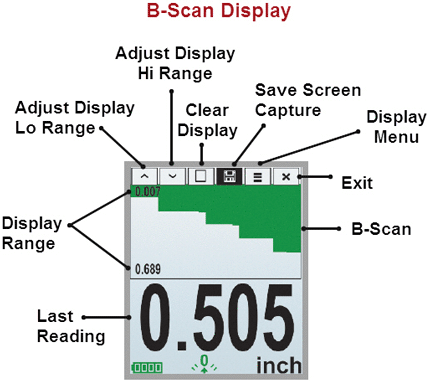

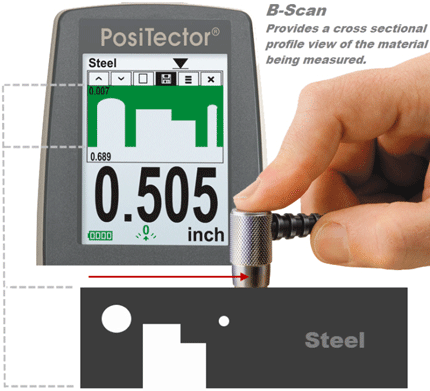

B Scan - display in which a cross sectional profile of the test material is represented	-
Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.	-
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer	-
Onscreen help, real time graphing, picture prompting and batch notes	-

Step 2: Select Probe Style

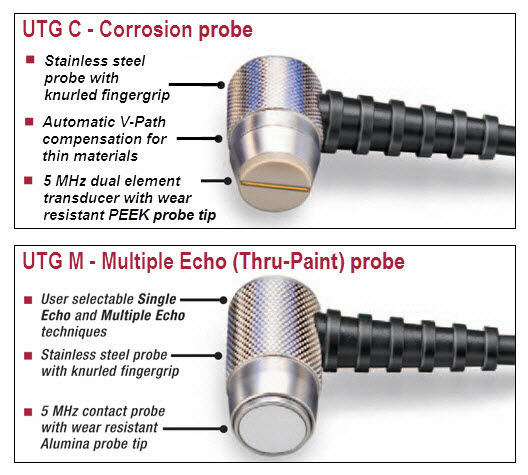

• 5 MHz dual element transducer with wear resistant PEEK probe tip
• Automatic V-Path compensation for thin materials

Multiple-Echo Probe
Features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

• 5MHz contact probe with wear resistant Alumina probe tip
• Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
• Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
• Toggle easily between:
• Multiple Echo mode to eliminate coating thickness
• Single Echo mode to detect pits and flaws, and to increase the measurement range

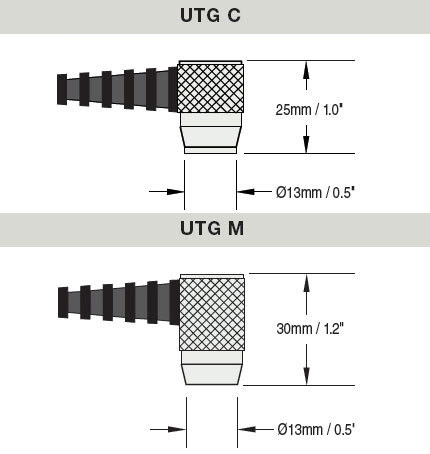

 Probe Specifications

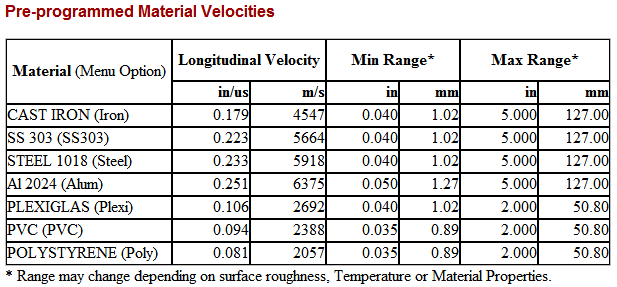

 Pre-programmed Material Velocities

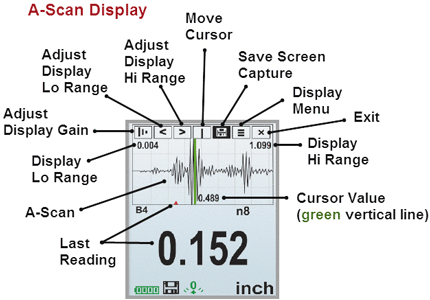

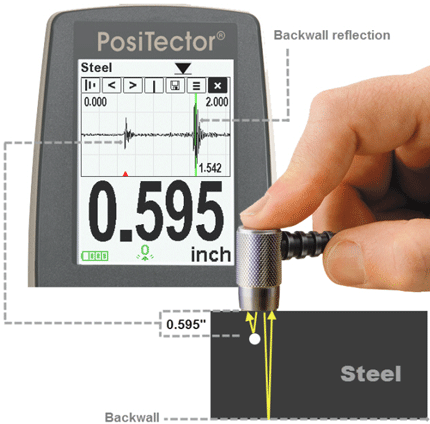

 A Scan

 B Scan
