 Resolution of 0.004 inch (0.01 mm) | | Large, backlit LCD display retains last reading
| | Simple operator controls virtually eliminate training | | Special-purpose probes are offered for a variety of applications | | The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions | | Switch-selected units for inches or mm |
| | For underwater surveying, probe cable lengths up to 50 feet are optionally | | The TI-25LT probe is waterproof and can be submerged in water | | CE Certified | | Includes NIST-Traceable Calibration Certificate | | Made in the USA |
|

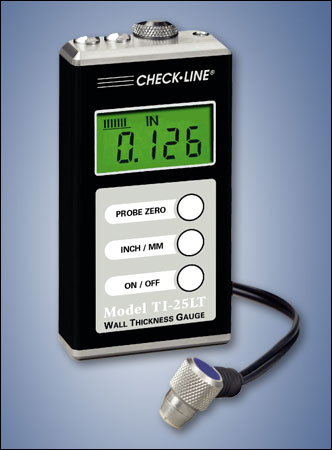

Wall Thickness Gauge TI-25LT
| | | NIST-Traceable Steel Test Block
3 Sizes Available |  | Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | | Click image for more info
|
___________________________________________ |
| | | Uncertified Steel Test Block
For Ultrasonic Gauges |  | For convenient confirmation of thickness gauge calibration | | | Click image for more info
|
___________________________________________ |
| | | TICC-M
Protective Holder for Ultrasonic Gauges |  | Constructed from heavy duty Cordura Nylon Built-in belt loop | | | Click image for more info
|
___________________________________________ |
| | | CF12
Coupling Fluid |  | Used to create an ultrasonic coupling between the probe and material to be measured | | | Click image for more info
|
___________________________________________ |
| | | V-Block
Transducer Holder |  | The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | | Click image for more info
|
___________________________________________ |
| | | TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  | 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors. | | | Click image for more info
|
|
| | | | Complete Kit includes: Gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
| Range in Steel |
0.040-6.00" (1.00-150.0 mm) |
| Resolution |
.004" (0.01mm) |
| Display |
4˝ - Digit, 0.5" Backlit LCD |
| Velocity Range |
.0787-.3937 in/µs
(2000-10,000 m/sec) |
| Probe |
1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Probe Wearface |
PEEK (Polyethylethylkytone) |
| Cable |
4ft. (1.2m) waterproof cable with non-polarized, quick-disconnect connectors. Op |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available |
| Battery Type |
Two AA batteries |
| Battery Life |
200 hours |
| Weight |
710 ounces (280g) |
| Dimensions |
2.5 x 4..5 x 1.25"
(64 x 114 x 32mm) |
| Accessories |
Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
Measuring Range
Thickness Gauge accurately measures steel thickness and the extent of corrosion - from only one side!
Easy upgrade to full TI-25M functionality (refer to separate data sheet). TI-25M measures on all metals, ceramics, glass and most rigid plastics. It provides Single Reading and Scan modes, where the probe is dragged over a large measuring area. The minimum reading recorded during the "scan" is displayed.
Features
