TI-25M-UWM
Underwater Ultrasonic Thickness Gauge |
 Measuring Range in Steel
0.050 - 19.99 inches
1.27 - 508.0 mm

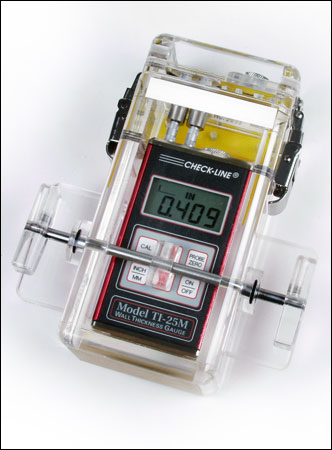

The new CHECK-LINE TI-25M-UWM Underwater Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 300 feet (91.44 M).
The TI-25M-UWM can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
|
 Resolution of 0.001 inch (0.01 mm) | | Large, backlit LCD display retains last reading | | Simple operator controls virtually eliminate training | | Special-purpose probes are offered for a variety of applications | | 300 feet depth rating |
| | Clear plexiglass construction, Stainless steel connectors, latches, and control bar | | Switch-selected units for inches or mm | | CE Certified | | NEW Elastic wrist strap secures the gauge during dives |
|
| | | | The TI-25M-UWM is supplied as a complete kit including gauge, underwater enclosure, underwater transducer, coupling fluid, instruction manual and calibration certificate in a foam lined hard plastic carrying case. |
 |
|
TI-25M
Ultrasonic Wall Thickness Gauge |  |
Resolution of 0.001 inch (0.01 mm) Simple operator controls virtually eliminate training | | Click image for more info | | ___________________________________________ |
|
TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  |
| | Click image for more info
|
| Range in Steel |
0.050-19.99" (1.27 - 508.0 mm) |
| Resolution |
.001" (0.01 mm) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Velocity Range |
6,500-33,000 ft./sec (2000-10,000 m/sec.) |
| Probe |
5 MHz, 0.5" Diameter |
| Cable |
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. |
| Battery Type |
Two AA batteries |
| Battery Life |
200 hours |
| Weight |
2.8 pounds |
| Size |
3.5 x 7.5 x 2.75"
(63.5 W x 190.5 H x 69.85 D mm) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probe: 90 Days
Enclosure: 1 year |
|
|
