TI-UMX2
Underwater Ultrasonic Thickness Gauge

Measuring Range in Steel
0.025 - 19.99 inches
0.63 - 508.0 mm

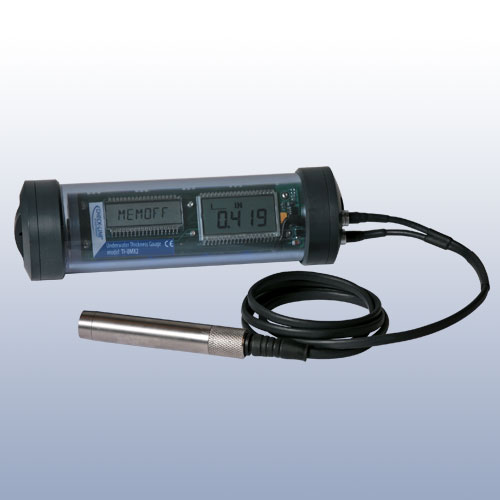

The new CHECK-LINE TI-UMX2 Underwater Wall Thickness Gauge accurately measures the wall thickness of all metals, extent of corrosion and the thickness of coatings on them -- at depths of up to 1000 feet (300 Meters).

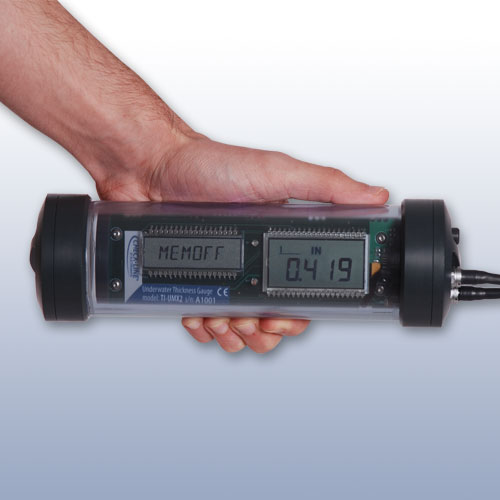

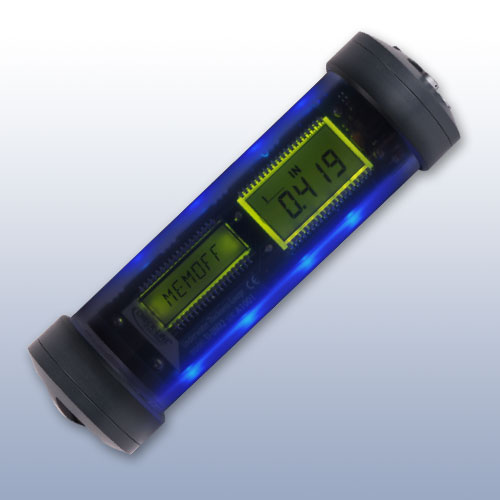

A back-lit LCD display and illuminated housing allow divers to easily read measurements in dark water.

An over-sized control button and clever menu structure allows easy gauge setup and navigation through menus above or below water even when wearing thick gloves.

The TI-UMX-2 can store up to 5000 readings including A-Scan Waveforms and settings for each individual measurement. There are 2 file structure options; sequential with auto identifier and alpha numeric grid (row/column) format. The UMX-2 can transfer data and configuration settings to a PC using our DataComm software. (Software and transfer cable included)

Velocity Settings
The TI-UMX2 has 8 preset velocities and 1 custom velocity allowing the user to customize it for specific applications, or to tune the calibration to be optimized for a specific type of material. The list of preset velocities are as follows:

1. Aluminum 2024
2. Stainless Steel 302
3. Steel4340
4. Iron
5. Cast Iron
6. PVC
7. Polystyrene
8. Polyurethane
9. Custom 1

Housing is rated for dive depths up to 1000 ft (300 meters) with backlit display

Resolution of 0.001" (0.01 mm) with user-selected units of inch or mm

Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format

Automatic probe recognition and auto zero

Supplied with FREE NIST-Traceable Calibration Certificate

Supplied with data transfer cable and FREE data analysis software

Measure modes include: Pulse-Echo, Pulse-Echo w/ Coating, Echo-Echo and Triple Echo

CE-certified with 3-Year Warranty (90 days on probe)

Measures BOTH Wall and Coating Thickness

Both Dual Element and Single Membrane Probes are offered

Standard Probe supplied is 1/2"-5MHz HD-Coating, Underwater p/n T-074-2906

All settings for gauge and datalogging can be done via software if desired

Use of single button and clever menu structure permits easy navigation through all settings when underwater

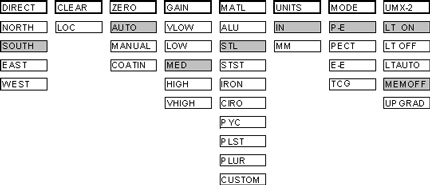

*Highlighted fields indicate default settings.

Note: TCG mode (Triple-Echo Verify) is only available when T-9441-2809 probe is connected to TI-UMX2 Gauge.

Range in Steel	Pulse-Echo Mode:(P-E) Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters) Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.025 to 19.999 inches (0.63 to 500 millimeters). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters). Echo-Echo Mode (E-E): Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating. Triple-Echo Mode (TCG): Thru Paint&Coatings) measures from 0.040 to 6.0 inches (1 to 150 millimeters) in steel. Range will vary based on coating thickness, material type, and probe.
Resolution	.001" (0.01 mm)
Velocity Range	8 fixed and 1 programmable Material Velocities .0492 to .5510 in./µs (1250 to 13995 m/sec)
PreSet Velocities	1. Aluminum 2024 - 0.2510 in/µs 2. Steel 4340 - 0.2330 in/µs 3. Stainless Steel 302 - 0.2230 in/µs 4. Iron - 0.2320 in/µs 5. Cast Iron - 0.1800 in/µs 6. PVC - 0.0940 in/µs 7. Polystyrene - 0.0920 in/µs 8. Polyurethane- 0.0700 in/µs 9. Custom User Set
Probe	STANDARD: Underwater Type, 1/2"-5MHz Dual-Element HD-Coating Probe OPTIONAL: Underwater Type, 1/2"-3.5MHz Dual-Element HD-Coating Probe MEMBRANE: 1/2"-5MHz Single-Elelent Contact Type Probe OTHER: Dual Element Type, 1 to 10 MHz frequency range. Custom auto recognition probes. Single Element Type: 1 to 10MHz frequency range. Inquire.
Display	4½ - Digit, 0.5" Backlit LCD (2nd Display for menus, 3/8" 6 character LCD)
Backlighting	Both Displays can be user set for ON/OFF/AUTO

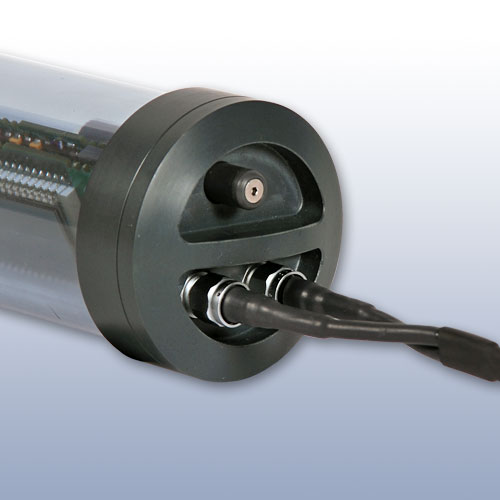

Cable	4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Connectors	Lemo, Underwater Type
Battery Type	Three (3) 1.5V AA alkaline batteries (or 1.2V NiCad)
Battery Life	BACKLITE OFF, typical 50 hours on alkaline (15 hours on NiCad) BACKLITE ON, typical 15 hours on alkaline (8 hours on Nicad)
Accessories Included	Velcro wrist strap, 4 oz. bottle of coupling fluid, AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable with USB converter and spare gasket & lube kit including Operating Instruction Manual - all in a foam-fitted carrying case
Datalogger	GRID or SEQUENTIAL data storage Capacity: 5000 wall & coating readings, settings and waveform graphics
Data Output	Bi-directional RS232 serial port, with USB converter. Windows® PC interface software
Operating Modes	PE: Pulse-Echo PECT: Pulse-Echo Coating EE: Echo-Echo EEE: Triple Echo TCG (requires T-9441-2809 MEMBRANE Probe)
Pulser	Dual square wave pulsers
Receiver	Dual receivers - manual or AGC gain control with 110dB range (limited)
Manual Gain	Limited to 5 gain settings (vlow, low, med, high, vhigh (42 to 50 dB)
Temp. Limits	Ambient: -20 to 140° F (-30 to 60° C)

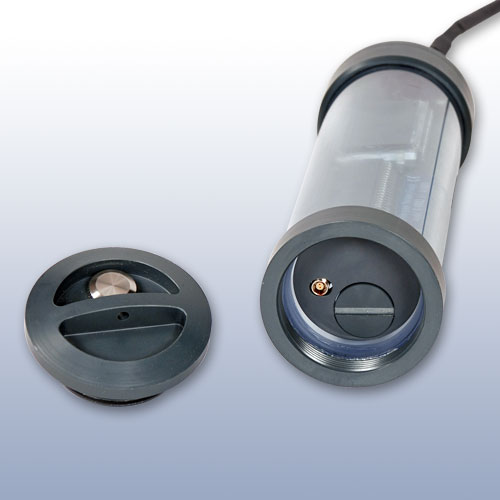

Housing	High strength transparent plastic IP 68 Waterproof Rating Depth Rating: 1000 feet (300 meters)

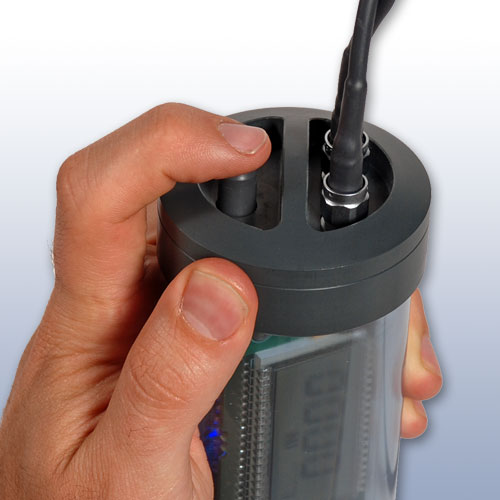

Keypad	Single button, magnetically coupled switch
Size	Length (9.0 in/229 mm) Diameter (2.375 in/60.33 mm)
Weight	1.5 lbs (680g) - with 3 AA batteries
Warranty	Gauge: 3 Years Probe: 90 Days
Certification	CE Approved, Factory calibration traceable to national standards


The TI-UMX2 is supplied as a complete kit with the gauge, Standard Transducer P/N T-074-2906, Velcro wrist strap, 4 oz. bottle of coupling fluid, 3-AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable with USB converter and spare gasket & lube kit including Operating Instruction Manual - all in a foam-fitted carrying case.
