TI-007DL
Data Logging Precision Ultrasonic Wall Thickness Gauge |
 Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

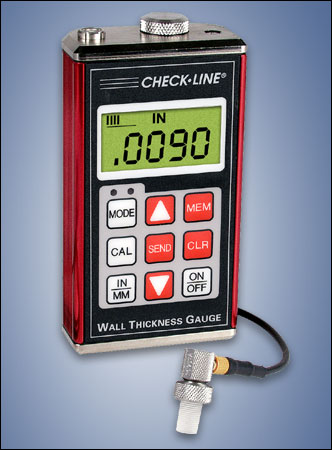

The TI-007DL is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.
The TI-007DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.
The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics. |
 Resolution of 0.0001 inch (0.001 mm) | | Selectable units of inch or mm | | Memory for 1000 data points in up to 10 batches | | RS-232C Serial output for downloading stored data to a printer or computer | | TI-007DL-GT model available with Graphite Tip for measuring plastics |
| | Windows compatible data transfer program supplied at no additional cost. | | Large, backlit LCD display retains last reading | | CE Certified | | Includes NIST Calibration Certificate |
|
| | | NIST-Traceable Steel Test Block
3 Sizes Available |  | Precision Machined and Finished Includes NIST Report and Test Data | | | Click image for more info
|
___________________________________________ |
| | | Uncertified Steel Test Block
For Ultrasonic Gauges |  | For convenient confirmation of thickness gauge calibration | | | Click image for more info
|
___________________________________________ |
| | | TICC-M
Protective Holder for Ultrasonic Gauges |  | Constructed from heavy duty Cordura Nylon Built-in belt loop | | | Click image for more info
|
___________________________________________ |
| | | CF12
Coupling Fluid |  | Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | | Click image for more info
|
___________________________________________ |
| | | P-25DL
Portable Printer for TI-25DL |  | Small, portable and easy to use Prints statistical data from the TI-25DL Ultrasonic Wall Thickness Gauge | | | Click image for more info
|
|
| | | | The TI-007DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
| P/N |
Description |
Standard / Optional |
Image |

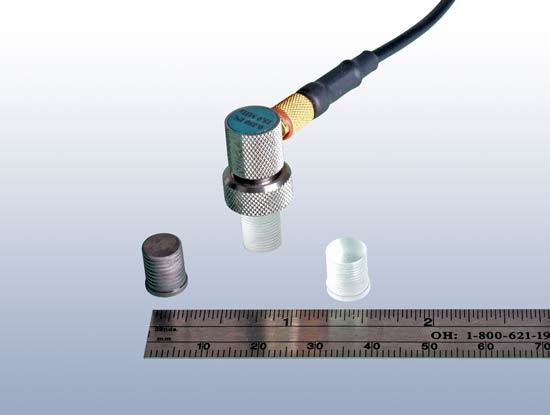

| X-231-0000 |
1/4" x 3/8"
for all metals
(Short) |
Standard |
 |
| X-241-0000 |
1/4" x 1/2"
for all metals
(Long) |
Standard |
 |
| X-633-0000 |
1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short) |
Standard on "-GT" models |
 |
| X-532-0000 |
3/16" x 3/8"
Conical Tip
for all metals
(Cone) |
Optional |
 |
| X-533-0000 |
3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone) |
Optional |
 |
|
| Range in Steel |
0.0060-1.0000" (0.15-25.40 mm) |
| Resolution |
.0001" (0.001 mm) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Velocity Range |
6,500-33,000 ft./sec (2000-10,000 m/sec.) |

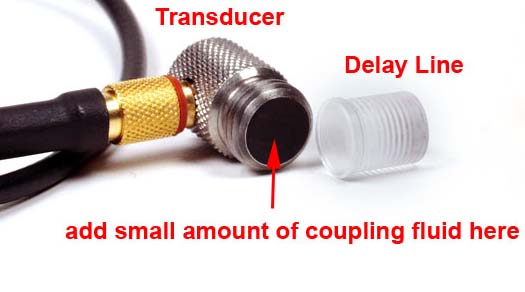

| Transducer |
Single element with delay tip. 10 to 22 MHz frequency range. |
| Probe Wearface |
PEEK (Polyethlethylketone) |
| Cable |

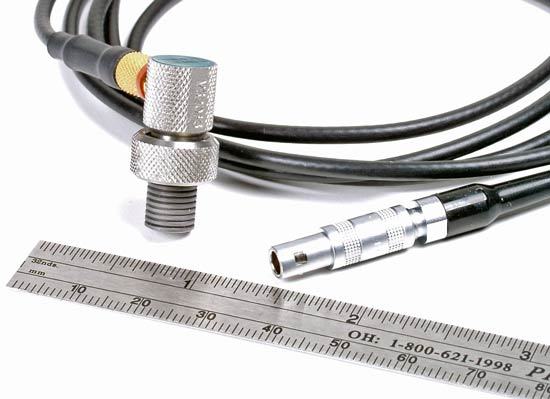

4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m) |
| Serial Output |
RS-232C (8, N, 1, user-set baud rate) |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) |
| Battery Type |
Two AA batteries |
| Battery Life |
200 hours |
| Weight |
7 ounces (196 g) |
| Size |
2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
