WTT-FGS
Wire Terminal Tester |

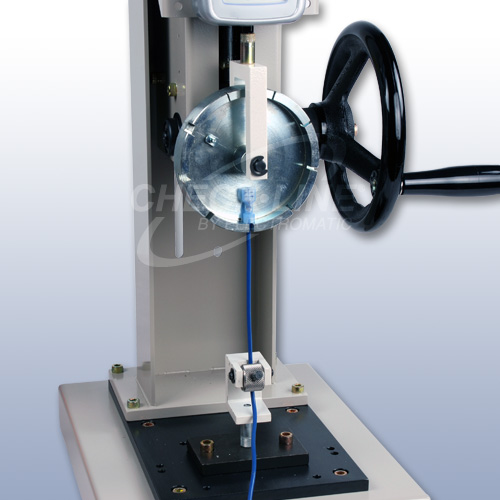

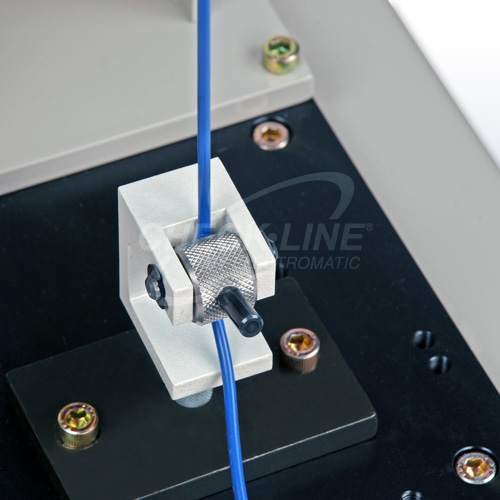

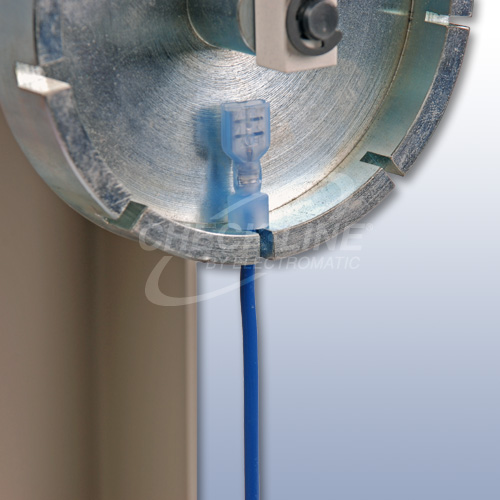

The WTT-FGS wire terminal tester is designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end. It is ideal for obtaining accurate, consistent results up to 110lbs.

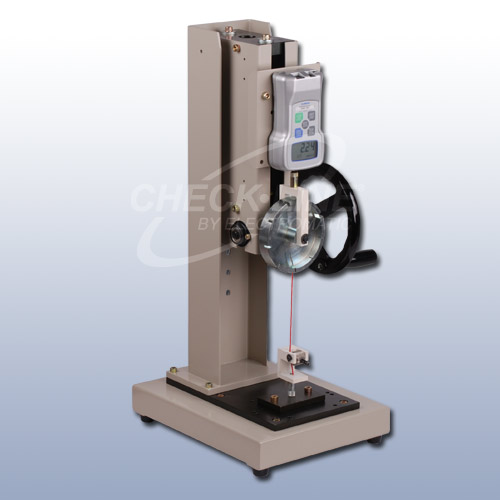

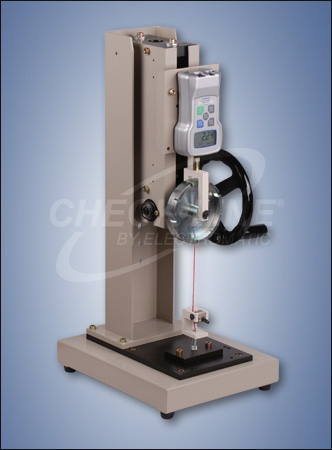

The WTT-FGS system is an easy to solution suitable for a vast majority of terminal testing applications. The system consists of the following:
Test Stand: FGS-100H
Force Gauge: FGV-100XY
Wire terminal tester: FG-M6WTER100
Max wire diameter 0.160" / 4mm (limited by bottom cam grip). |
 Versatile bottom mounting plate accepts standard and custom-made attachments | | Precision gear movements |
| | Sturdy, all steel construction | | Constant Linear Motion |
|
|
FGS-100H
Manual Hand Wheel Operated Test Stand |  |
Versatile bottom mounting plate accepts standard and custom-made attachments | | Click image for more info | | ___________________________________________ |
|
FGV-XY
Digital Force Gauge with USB Output |  |
Accuracy of ±0.2%
providing superb repeatability USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility | | Click image for more info | | ___________________________________________ |
|
FG-M6WTER100
Wire Terminal Test Fixture |  |
| | Click image for more info
|
| Capacity |
110 lbs (50 kg) |
| Stroke |
5.9" (150 mm) |
| Travel Rate |
3 mm/wheel turn (approximately) |
| Weight |
approx. 33 lb (15 kg) |
| Warranty |
1 year |
|
|
