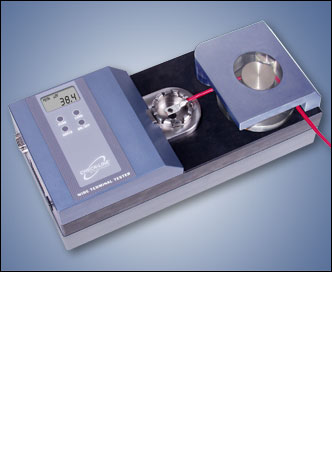

Motorized Wire Terminal Pull Tester

As of November 2011 the WTTM is no longer available. a replacement will be announced early 2012.

2 Models Available
WTTM-110 - Capacity: 110LB/50KG/500N
WTTM-220 - Capacity: 220LB/100KG/1000N

The new Check•Line WTTM Motorized Wire Terminal Pull Test is designed for tensile strength testing of wire terminals in accordance with DIN, EN, BS, IEC, UL, SAE and MIL standards

Its very simple operation allows the users to acquire reliable and reproducible test results: the user inserts the wire terminal into the receptacle adapter, and the open wire end into the combined clamp-pull device. After the protection cover has been closed, the motor starts. The wire will be fixed into position, and then constantly pulled.

Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130").

Easy to use - with automatic peak value recording, very high accuracy and reproducibility of measurement results

Selectable pull rates of 1 to 10 inches/min (25 to 250 mm/min)

Supplied with FREE Data Transfer program and serial cable

Includes Traceable Calibration Certificate

To operate, simply follow these steps:
1. Select the appropriately sized slot in the Wire Terminal Fixture and rotate to the front position
2. Insert the terminal and wire so that it is secured on the back-side of the slot
3. Route the wire so that it passes through the clamping device
4. Select Peak-Hold or Continuous Measure mode using the PEAK key
5. Press the ZERO key to perform tare function
6. Close the protective cover and the motor will start the test
7. Read current force and breaking force on the digital display
