WTT-110
Wire Terminal Tester - Pull Tester |
Measuring Range
0-50 Kg / 0-110lbs / 0-500 N
(User Selected)
Accurately measure the pull or “pull-off” force on most soldered or solder-less wire terminals, crimped connectors and similar wire terminations.
The WTT-110 is an easy to use all-in-one, single-range solution suitable for a vast majority of terminal testing applications eliminating the need to purchase any additional grips, fixtures or accessories.
Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130").
Pricing
WTT-110: $1,695.00
WTT-110RS: $1,895.00 |
 Precision strain gauge sensing provides a resolution of 1/5000 with an accuracy of 0.5%
| | Display force values in “peak-hold” or “continuous” measurement mode | | Operates from AC power or built-in rechargeable battery via supplied adapter/ charger |
| | Fabricated from steel and stainless steel, machined to the highest tolerances | | Model WTT-110RS includes RS-232 and analog outputs for external data recording |
|
 |
To operate, simply follow these steps:

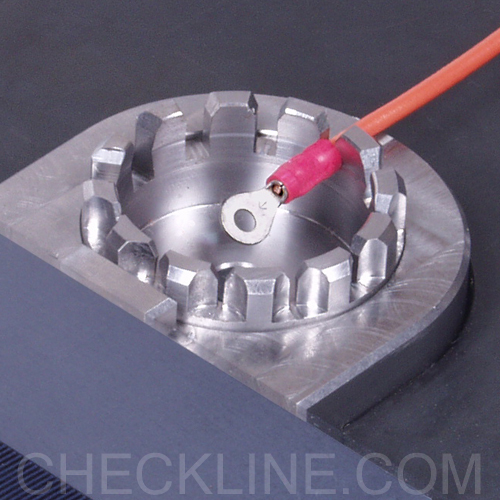

1. Select the appropriately sized slot in the Wire Terminal Fixture and rotate to the front position
2. Insert the terminal and wire so that it is secured on the back-side of the slot

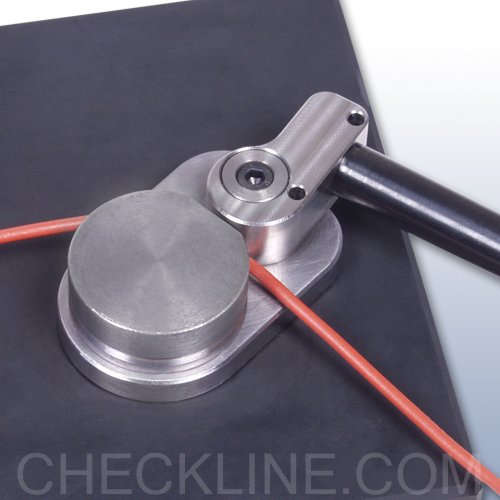

3. Route the wire so that it passes between the lever and the lever clamp

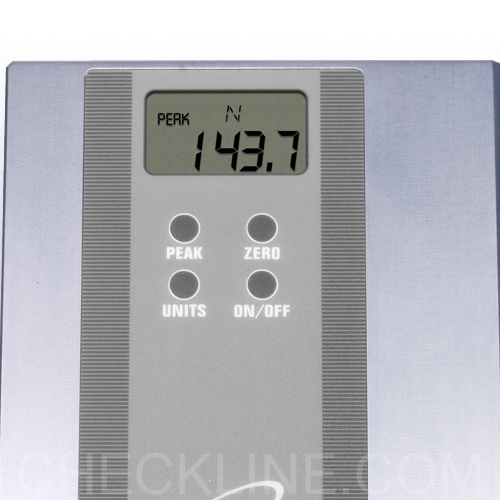

4. Select Peak-Hold or Continuous Measure mode using the PEAK key
5. Press the ZERO key to perform tare function

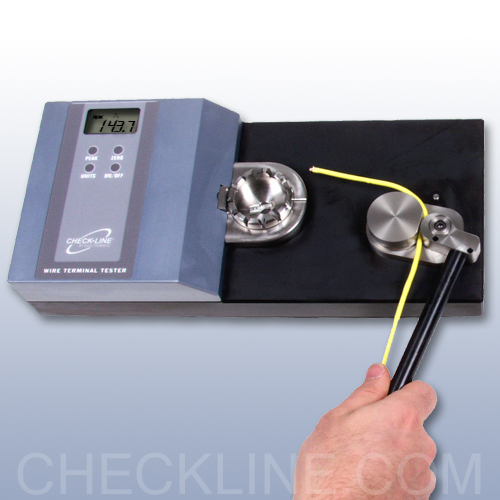

6. Rotate the lever clockwise, which clamps the wire and begins creating a pull force on the terminal
7. Read current force and breaking force on the digital display
 Calibration for all WTT-110 models can easily be verified or re-certified with a single 50 Kg hook weight as described below:
1. Remove the lever by unscrewing it in a counter-clockwise direction and move the Wire Clamp assembly out from the path of the hanging sample.
2. Position the WTT-110 in a vertical position at the edge of a strong bench or desk (refer to photo). Be sure to secure it so it can not topple over when the weight is attached.
3. Using a heavy-duty monofilament (fishing line), wire or similar, suspend a known weight from one of the teeth on the wire terminal fixture by hooking a loop of the material over the selected tooth.
Complete calibration instructions:
WTT-110 Calibration Manual - Click here to download
|
|

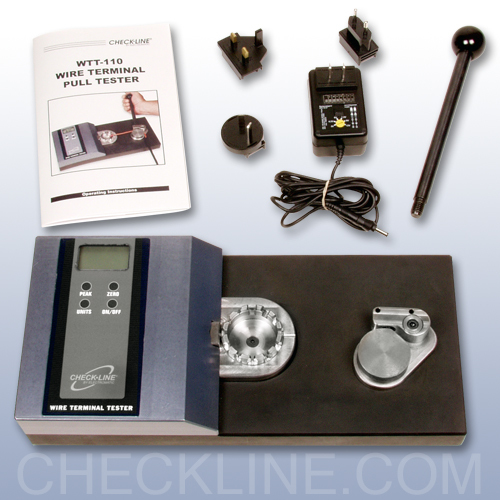

| | | | The WTT-110 is supplied as a Complete kit that includes; main instrument table, separate hand lever with ball end, 9VDC battery charger 100...240VDC (50...60Hz) with Euro/US/UK plug adaptor, operating instructions & Traceable certificate. WTT-110RS model also includes connection cable for RS232C (not shown) |
 |
| Measuring Range |
0-50 Kg / 0-110 lbs / 0-500N
(units selected via keypad) |
| Resolution |
0.01 Kg / 0.1 lbs / 0.1 N |
| Terminal Adapter Slot width (mm) |
0.5, 0.8, 1.0, 1.4, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0 |
| Accuracy |
±0.5% F.S. or better |
| Operating Mode |
Continuous:
Displays actual value in Kg, lbs pr N
Peak-Hold:
Displays peak value in Kg, lbs pr N |
| Wire Diameter |
SAE AS7928 II: AWG 8...30
IEC 60352-2: Cross section 0.05...10mm²
Maximum: 0.236" (6mm) |
| Overload |
200% Full Scale (LCD indicator at 120%) |
| Display |
LCD, 4-1/2 digit, 12mm high |
| Memory |
Peak Value |
| Power Supply |
Internal NiCd battery, supplied with AC adapter/charger (115 V/60Hz) |
Interface
*WTT-110RS Only |
RS-232C - 2400 KB / 8 / N / 1 / None (selectable baud rate) |
| Temp. Range |
Operating: 32 to 104° F (0 to 40° C)
Storage: -4 to 140° F (-20 to 60° C) |
| Weight |
30.8 lbs (14 Kg) (Shipping weight 37lbs) |

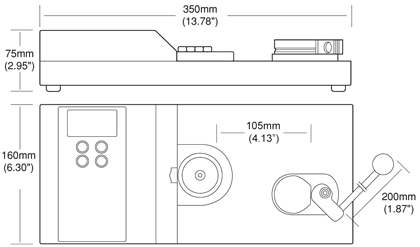

| Dimensions |
14.2" x 6.3" 2.6" (360 x 160 65mm) |
| Material |
Anodized aluminum, steel and stainless steel |
| Reverse Display |
With the WTT-110 powered off, hold down "UNITS" key and press "ON/OFF" key, release after unit powers on |
|
|
